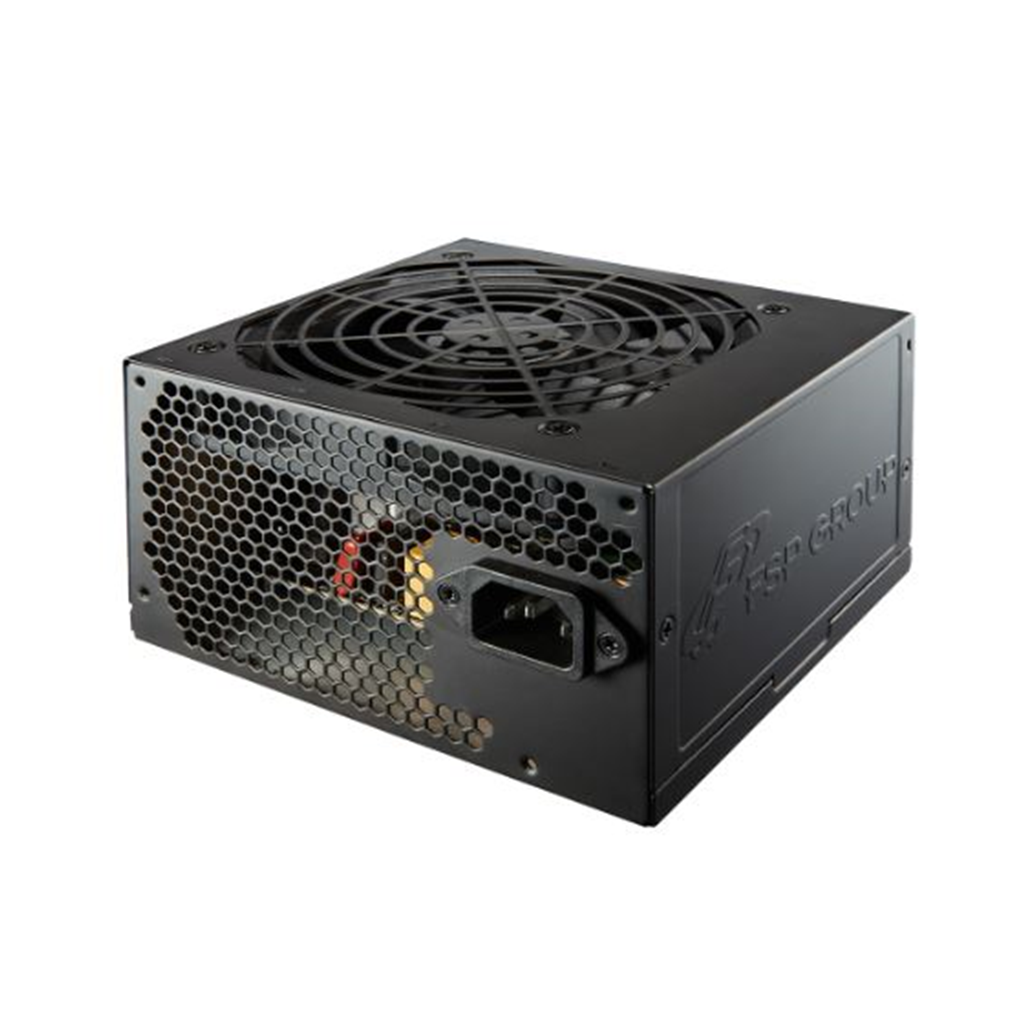

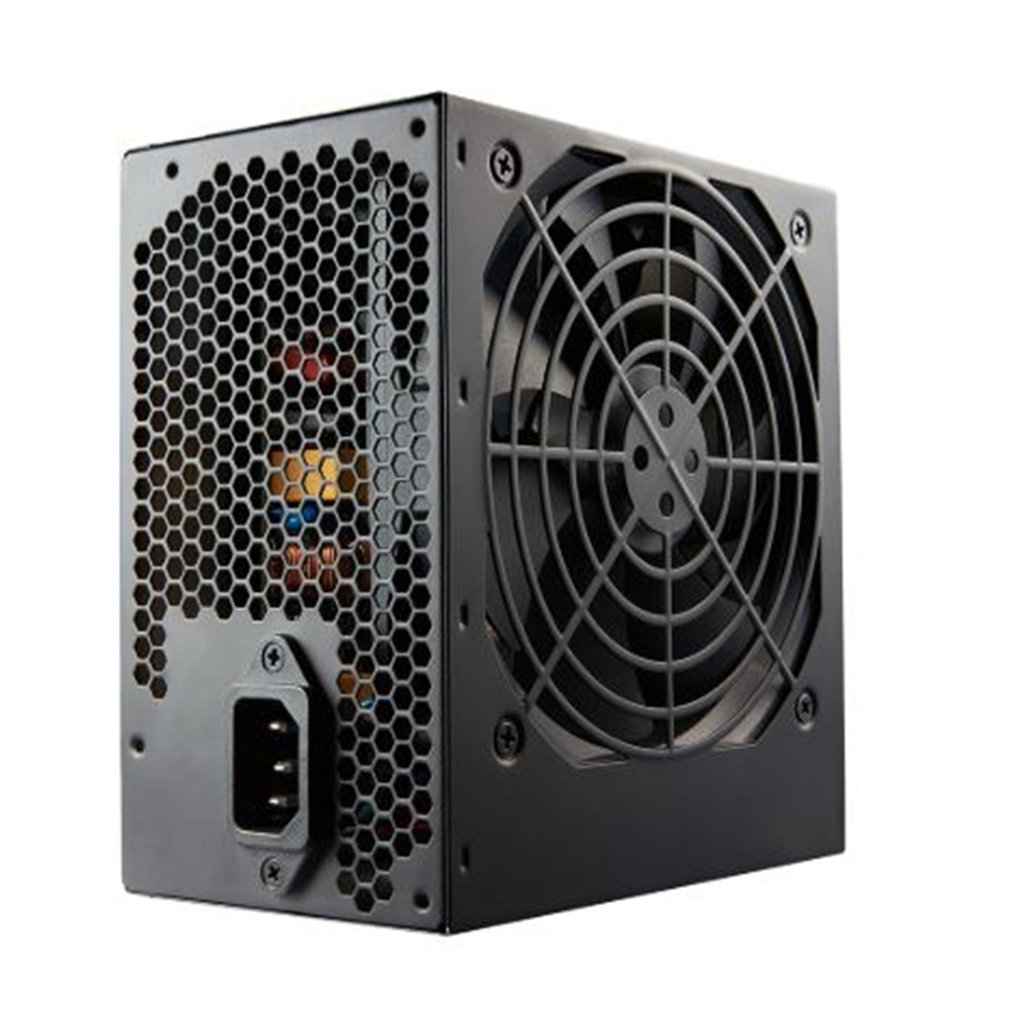

FSP HEXA+ 400
- Complies with ATX12 v2.4 & EPS12 v2.92
- Efficiency ≧ 80% @ typical load
- Active PFC ≧ 0.9
- Hold up time > 17ms @ 100% loading
- +12V Single-rail design
- All black round cables
- Long life 120mm silent fan
- Complete protections: OVP, SCP, OPP
- Global safety approved
AC/DC
| AC Input | 100-240Vac~ 200-240A 50-60Hz | ||||
| DC Output | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 14A | 14A | 46A | 0.3A | 2A |
| Max Combined Power | 80W | 552W | 3.6W | 10W | |
| Total Power | 600W | ||||
Specifications
| Model | H2-400 |
| Rated Output Power | 400W |
| Form Factor | ATX 12V V2.4 & EPS 12V V2.92 |
| Input Voltage | 200-240Vac |
| Input Current | 3A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC (>0.9 typical) |
| Efficiency | Meet 80% @ Typical Load |
| Fan Type | 120mm Quiet Fan |
| Noise | < 21 dBA |
| Dimensions(L x W x H) | 150 x 140 x 86 mm |
| Operation Temp. | 0~40°C / 32°F~104°F |
| Protection | OVP/OCP/SCP |
| Safety Approval | CE/CB/TUV/C-tick |
