• Mid tower size with sleek and mesh design for superior cooling.
  • 6 x 120mm/140mm fan mounts support, and pre-installed 3 x 120mm blue LED fans (2 x in the front and 1 x in the rear of the chassis) for unmatched ventilation potential.
  • 7 x PCI-E expansion slots, 2 x ODD, 2 x HDD and 2 x SSD bays for unmatched expandability.
  • Supports high-end graphics cards with the maximum length up to 373mm, and CPU cooler up to 179mm height.
  • Supports up to 2 x 280mm radiators
  • Built-in 2 x USB 3.0 and 2 x USB2.0 for high speed data transfer
Categories: , Tag:

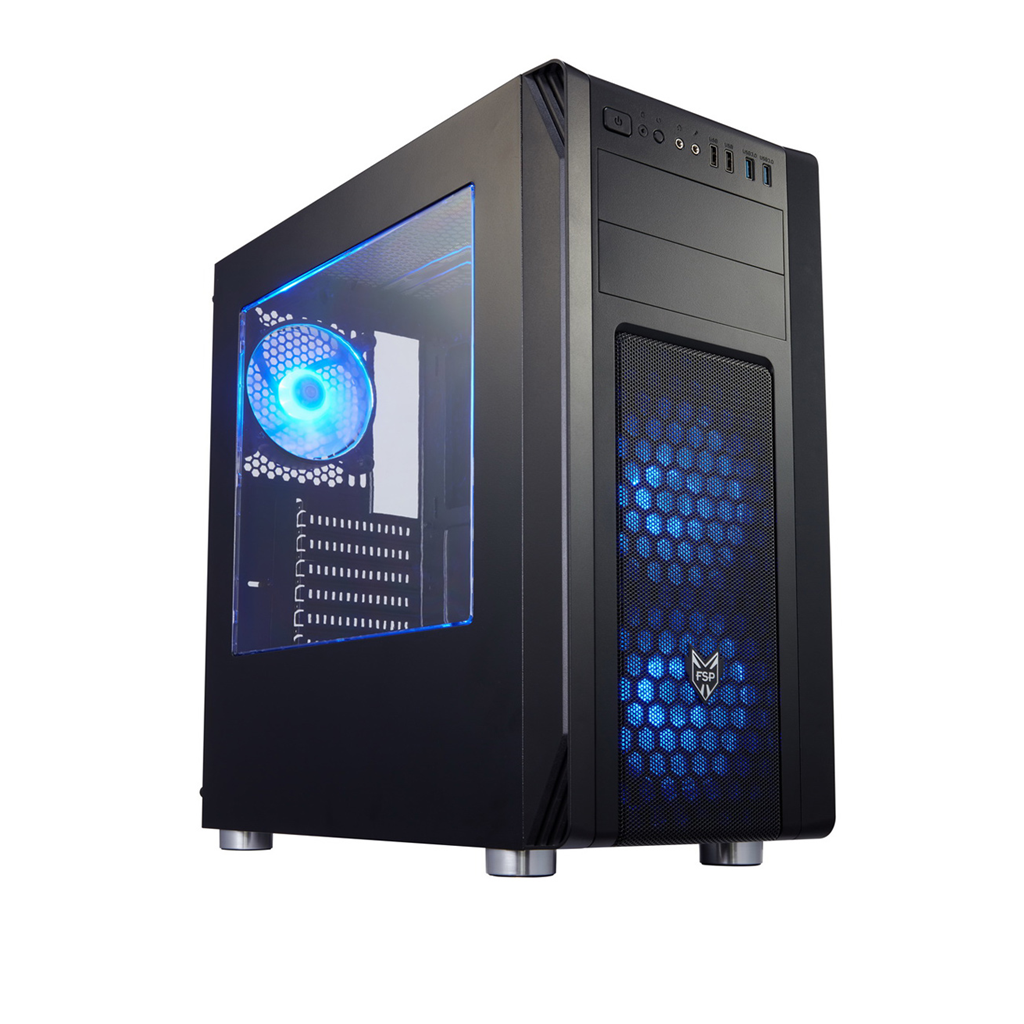

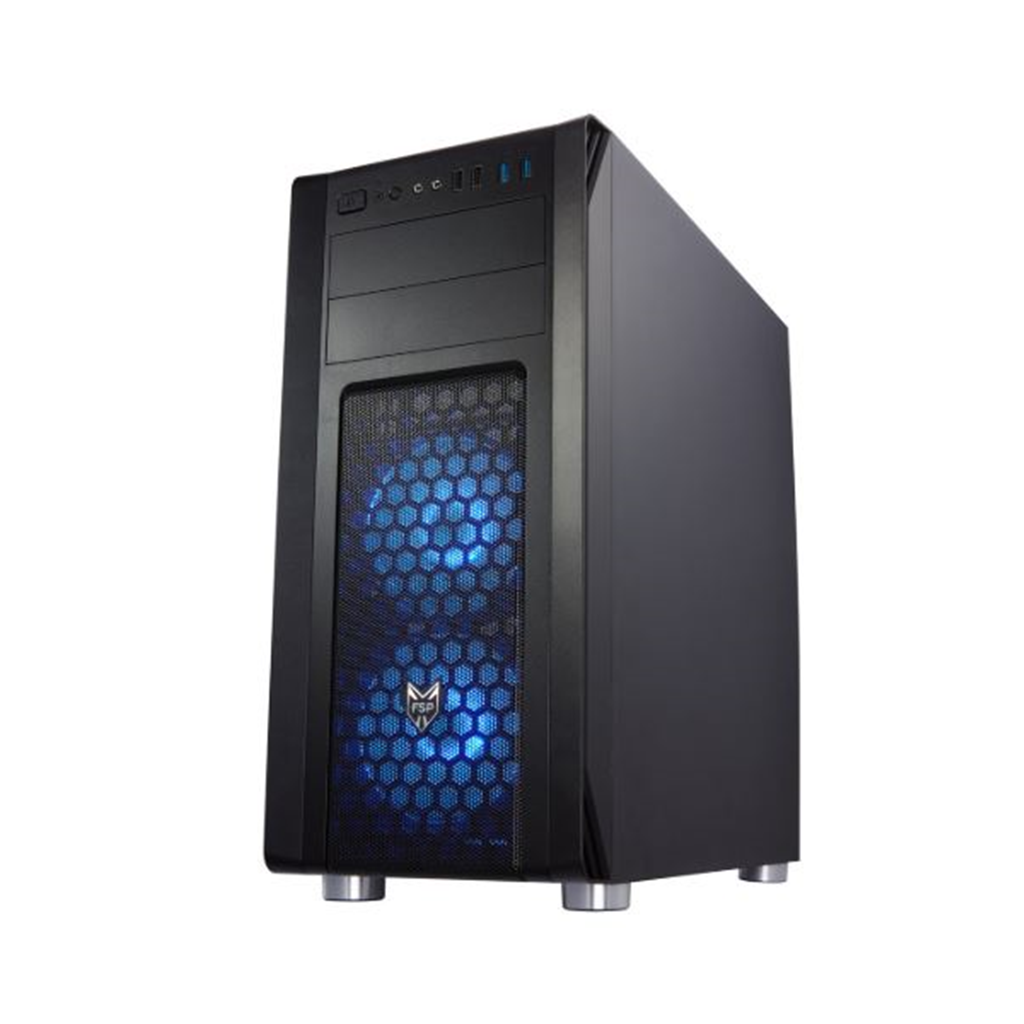

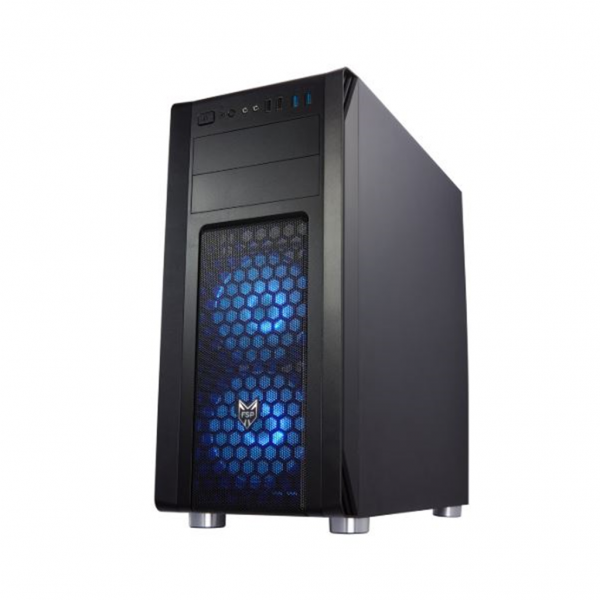

Elegant, Modern Design

The refined style and mesh front panel with flexible ventilation always keeps your components running cool. The CMT230 is a solid choice for any gaming, enterprise, or stylish home PC build that can be easily customized and maintained.

Flexible Cooling Options

The CMT230 offers two pre-installed front fans and one rear 120mm blue LED fan. On top of that, there are mounts for up to six 120mm/140mm fans, or up to two 280mm radiators for extra cooling options.

Detachable Mesh Top Cover

Designed with convenience in mind, the CMT230’s magnetic adhesion make it easy to keep your PC dust-free and spend less time on maintenance.

Upgraded I/O Panel

The new CMT230 sports more easily accessible USB ports (USB 3.0 x2, USB 2.0 x2) and regular interfaces for greater connectivity.

Designated PSU Location

The CMT230 is equipped with a power supply cover complete with the stylish FSP Logo.

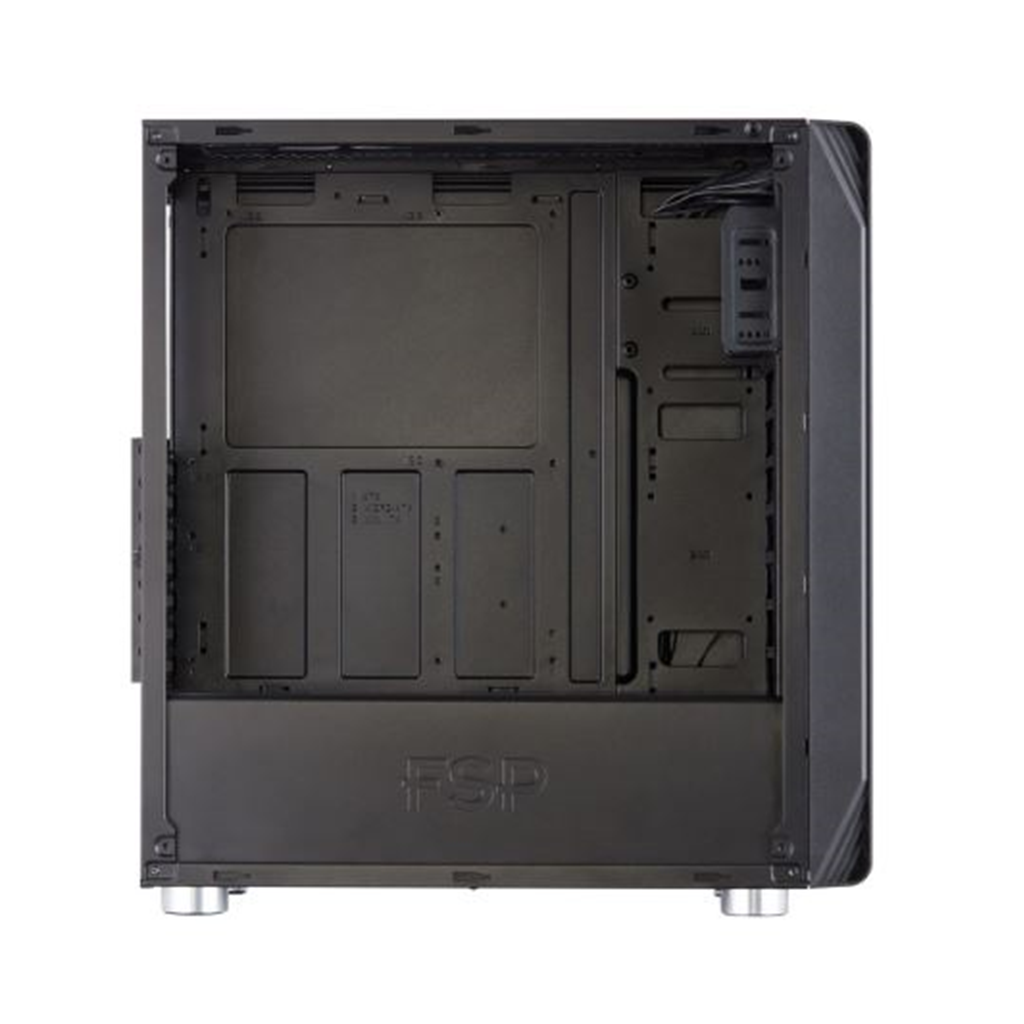

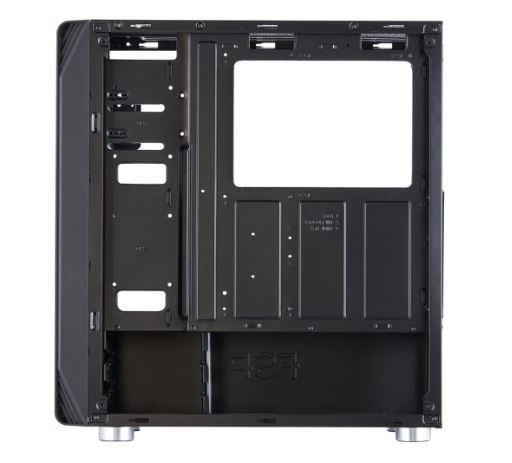

Installed Schematic


Model Name CMT230
Type ATX Mid Tower
Color Black
Materials SPCC, Plastic
Dimension DxWxH (mm) / (inch) 390 x 210 x 450mm
15.35 x 8.27 x 17.72inch
Maximum CPU Cooler Height 179mm
VGA Card Length 373mm
Expansion Slots 7
MotherBoard Support ATX, Micro ATX, ITX
External I/O port USB3.0 x 2,USB2.0 x 2,Audio
Power Supply Type 210mm ATX
5.25″ ODD 2(If ATX motherboard is installed, the maximum supported length of the CD-ROM drive is 170mm)
3.5“ HDD 2
2.5″ SSD 2
Fan Including(pre-install) Front: 120mm Blue Fan x 2
Rear: 120mm Blue Fan x 1
Fan&Water Cooler Support Front: 120mm/140mm x 3 or 280mm Radiator x 1 (No Install Optical Disc Drive)
Top: 120mm/140mm x 2 or 280mm Radiator x 1
Rear: 120mm/140mm x 1
Max Radiator Support 280mm x 2
