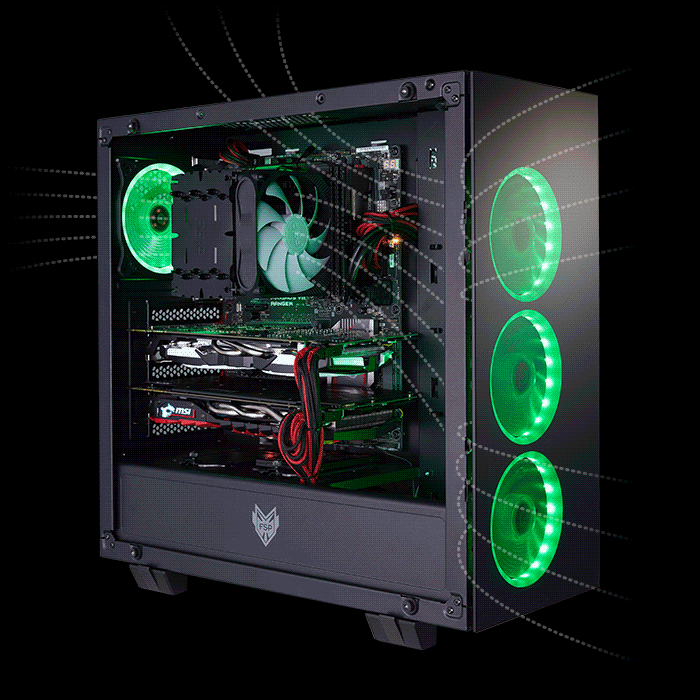

Aerodynamic DesignPre-installed 3 x 120mm RGB LED fans in the front and |
||||||||||||||||||||||||||||||||

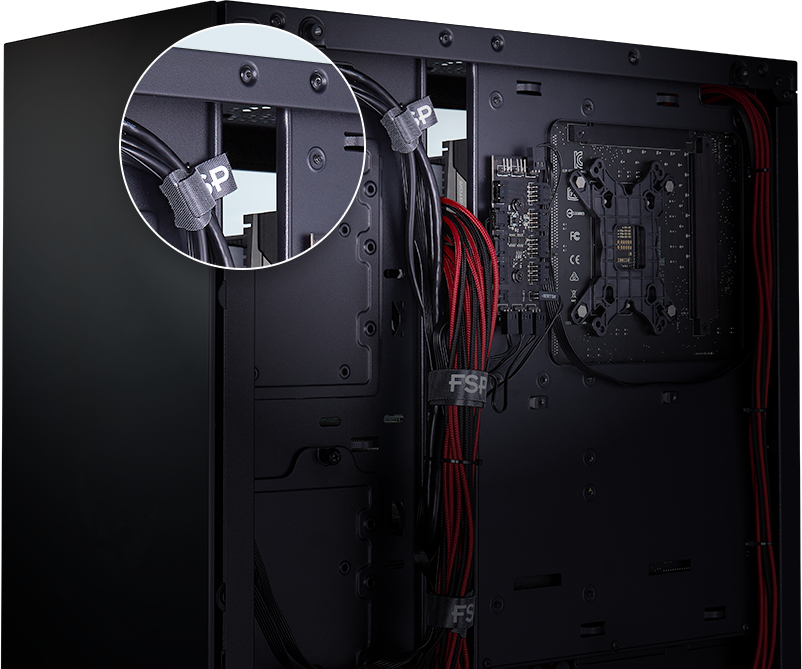

Easy and Simple InstallationLarge predrilled holes for easy cable access and management. |
||||||||||||||||||||||||||||||||

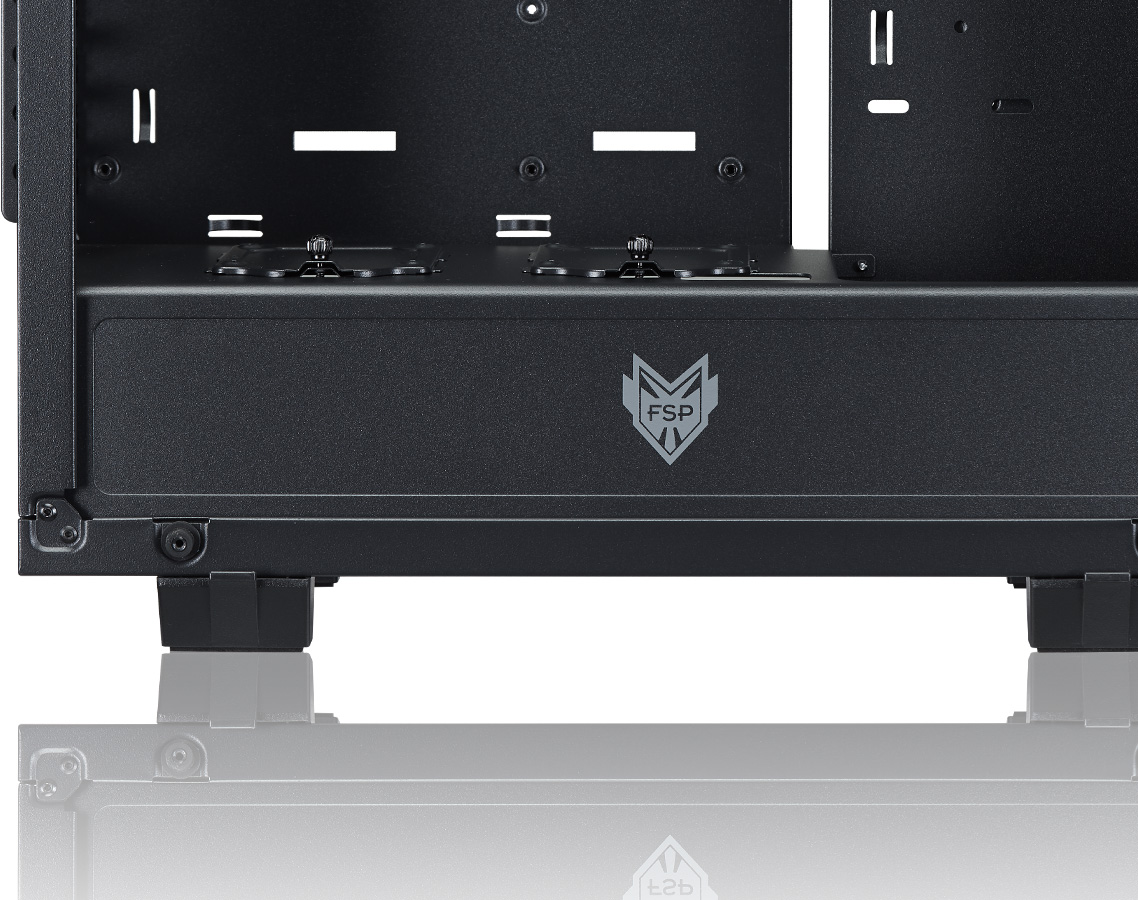

Designated location for PSUEquipped with dust-free PSU cover to create an ideal environment for your PSU. 30 mm High Foot StandsNot only it prevents the bottom surface from scratching, but it also enhances heat emission and cooling.
|
||||||||||||||||||||||||||||||||

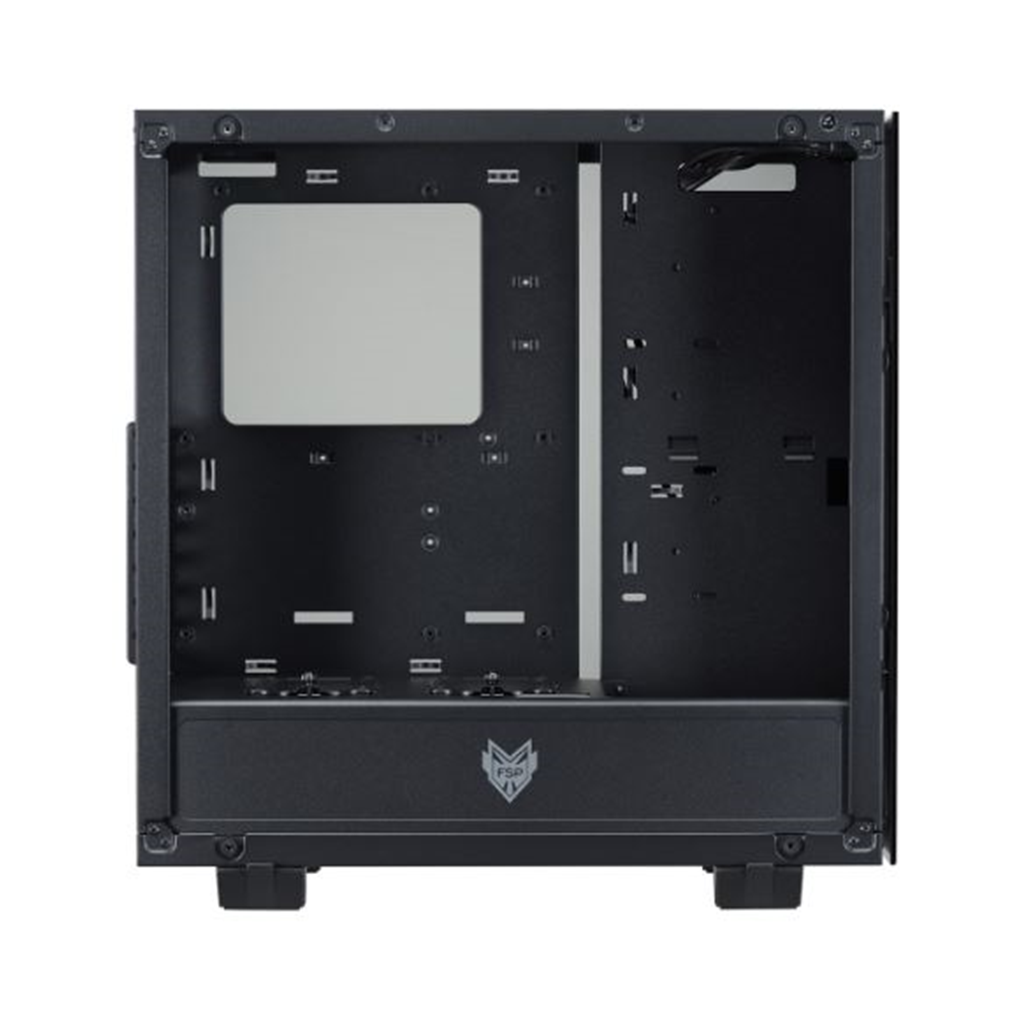

Plenty of Room Reserved for Your MotherboardThe spacious interior in CMT510 fits all standard motherboards (ATX, Micro ATX, Mini-ITX) for your gaming needs. |
||||||||||||||||||||||||||||||||

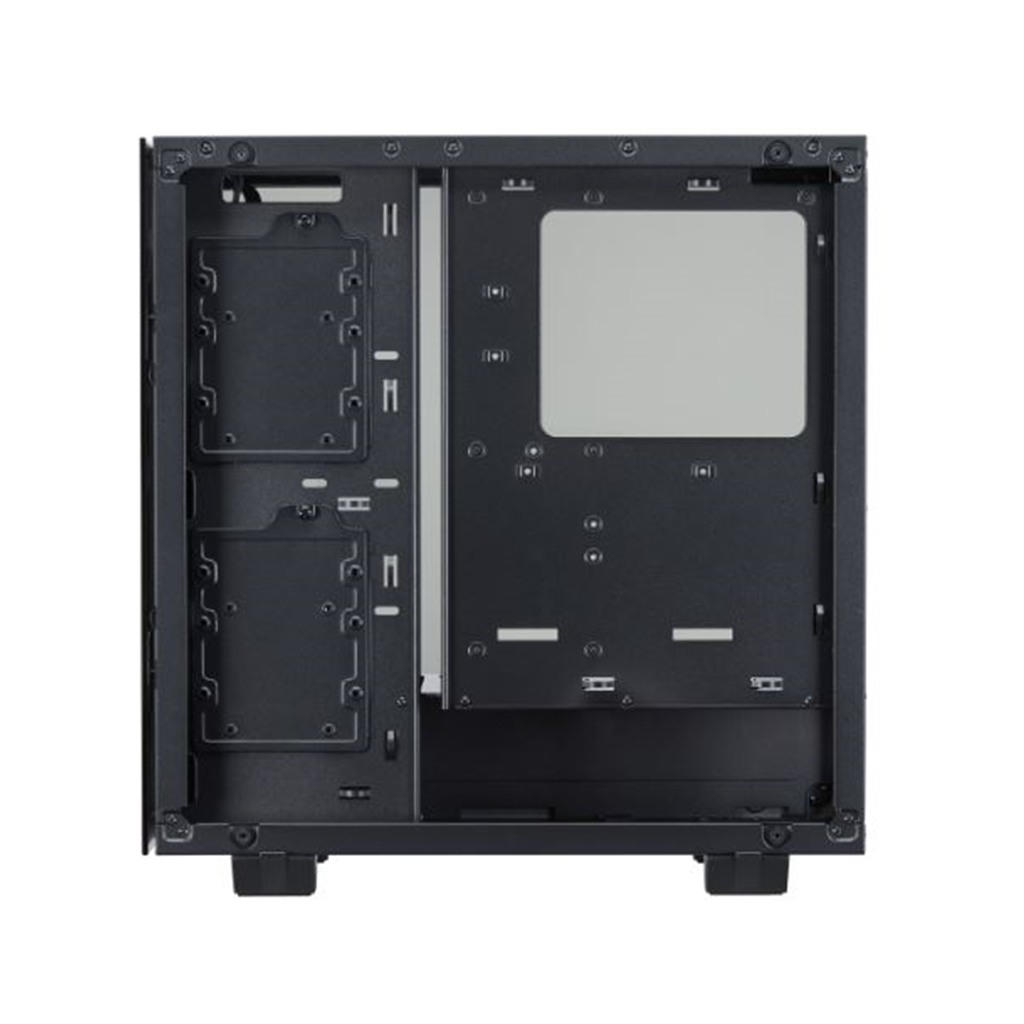

Clean & Simple Storage Tray Design2 x 3.5″HDD and 4 x 2.5″ SSD bays. |
||||||||||||||||||||||||||||||||
Specifications
|
Features

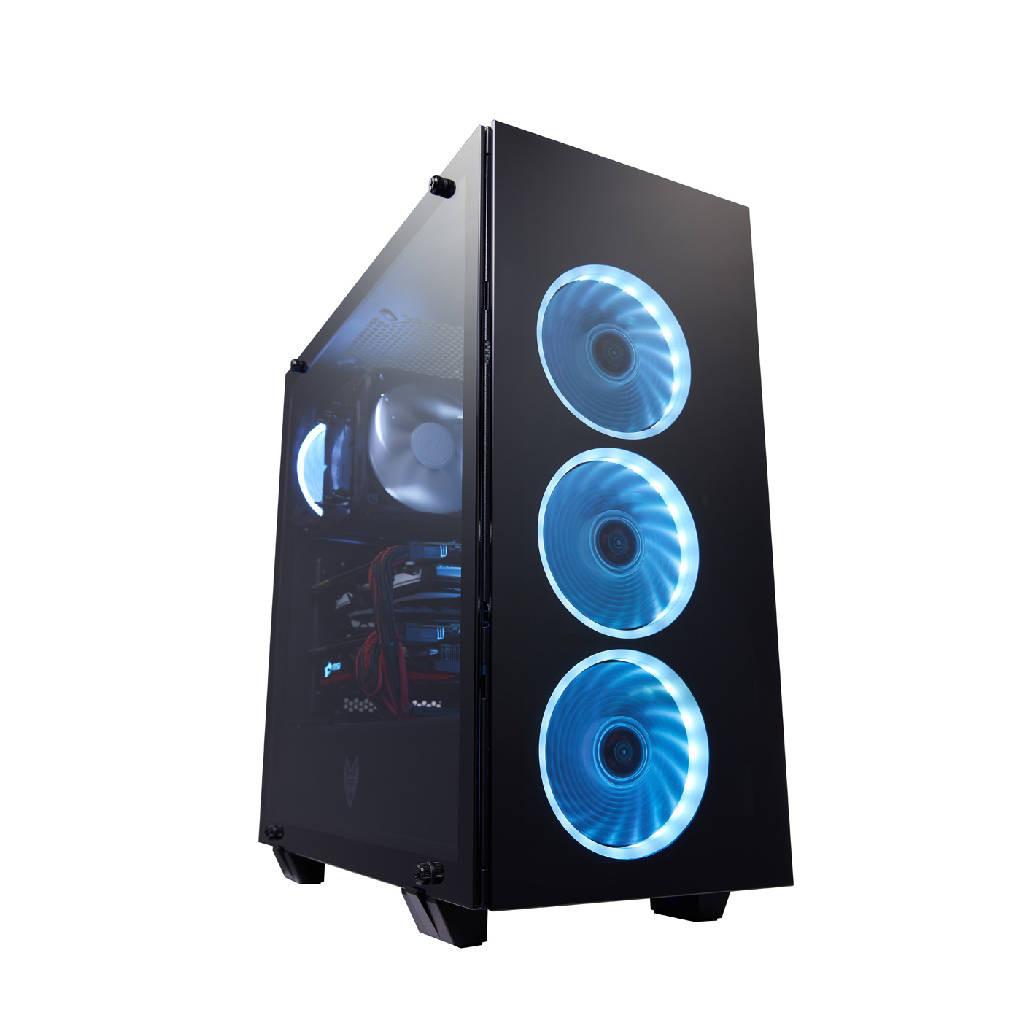

- Mid tower size with galaxy black appearance
- Three translucent tempered glass panels
- Built-in 4 x RGB 12cm LED fans
- 7 x PCI-E expansion slots , 2 x 3.5″HDD and 2 x 2.5″ SSD bays
- Built-in 2 x USB 3.0 ports
- Support 360mm water radiator
- Supports high-end graphics cards max. to 400mm length, and CPU cooler to 165mm height
Specifications
Model Name | CMT510 |
Type | ATX Mid Tower |
Color | Black |
Materials | SECC, Tempered glass |
Dimension DxWxH (mm) / (inch) | 491 x 208 x 448mm / 19.15 x 8.11 x 17.47inch |
Maximum CPU Cooler Height | 165mm |
VGA Card Length | 400mm |
Expansion Slots | 7 |
MotherBoard Support | ATX, Micro ATX, Mini-ITX |
External I/O port | USB3.0 x 2, Audio, Microphone |
Power Supply Type | 210mm ATX |
3.5“ HDD | 2 |
2.5“ HDD | 2 |
Fan Including(pre-install) | Front: 120mm x 3 RGB Led Fan Rear: 120mm RGB Led Fan |
Fan&Water Cooler Supply | Front: 120mm x 3 or 140mm x 2, or 360mm x1 Radiator Top: 120/140mm x 1 Rear: 120mm x1 |
Max Radiator Support | 360mmx1 |
