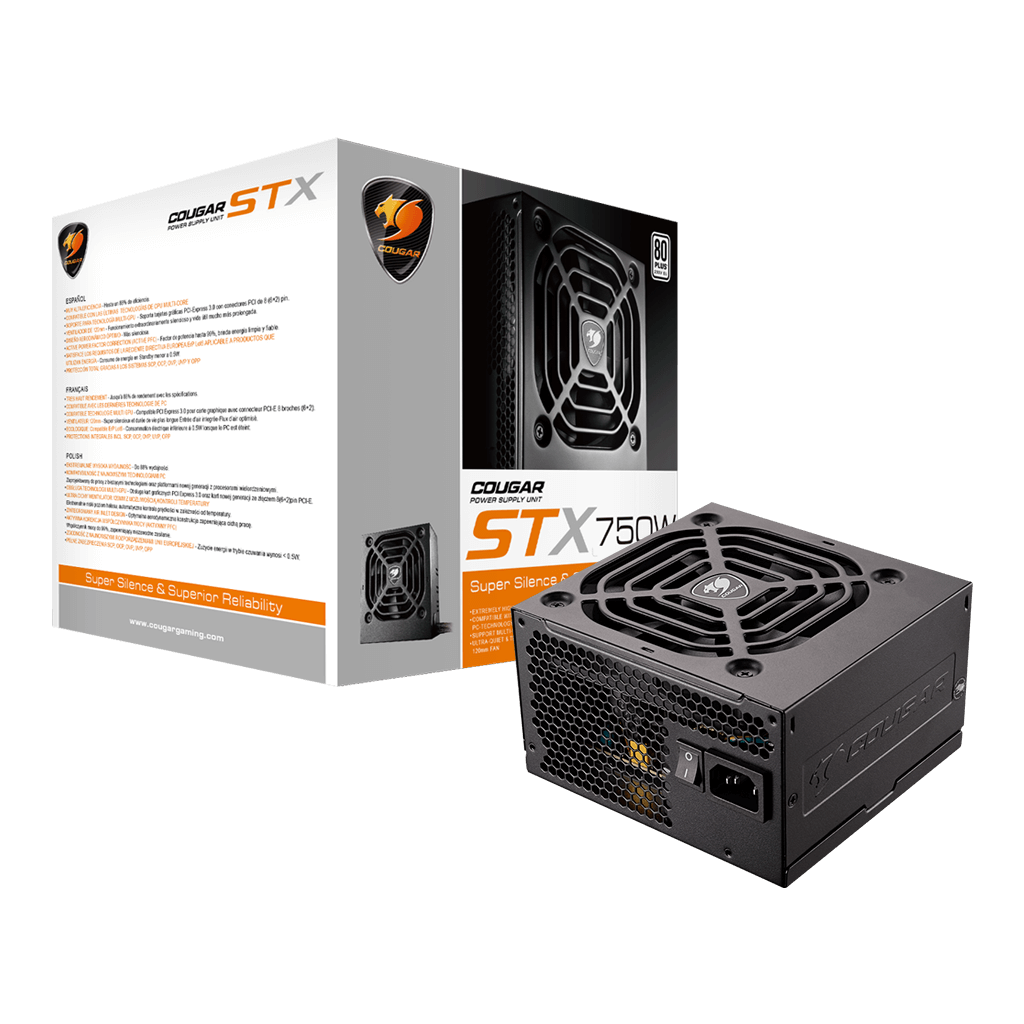

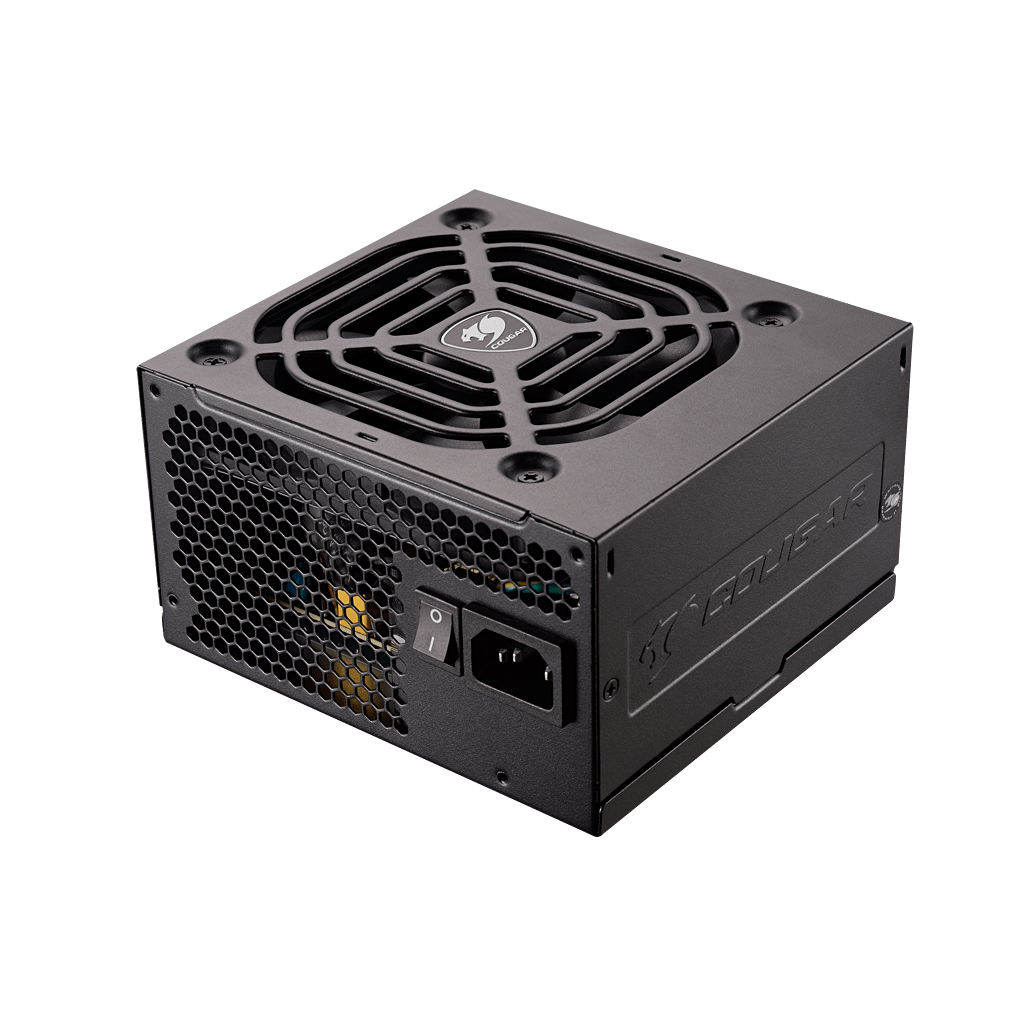

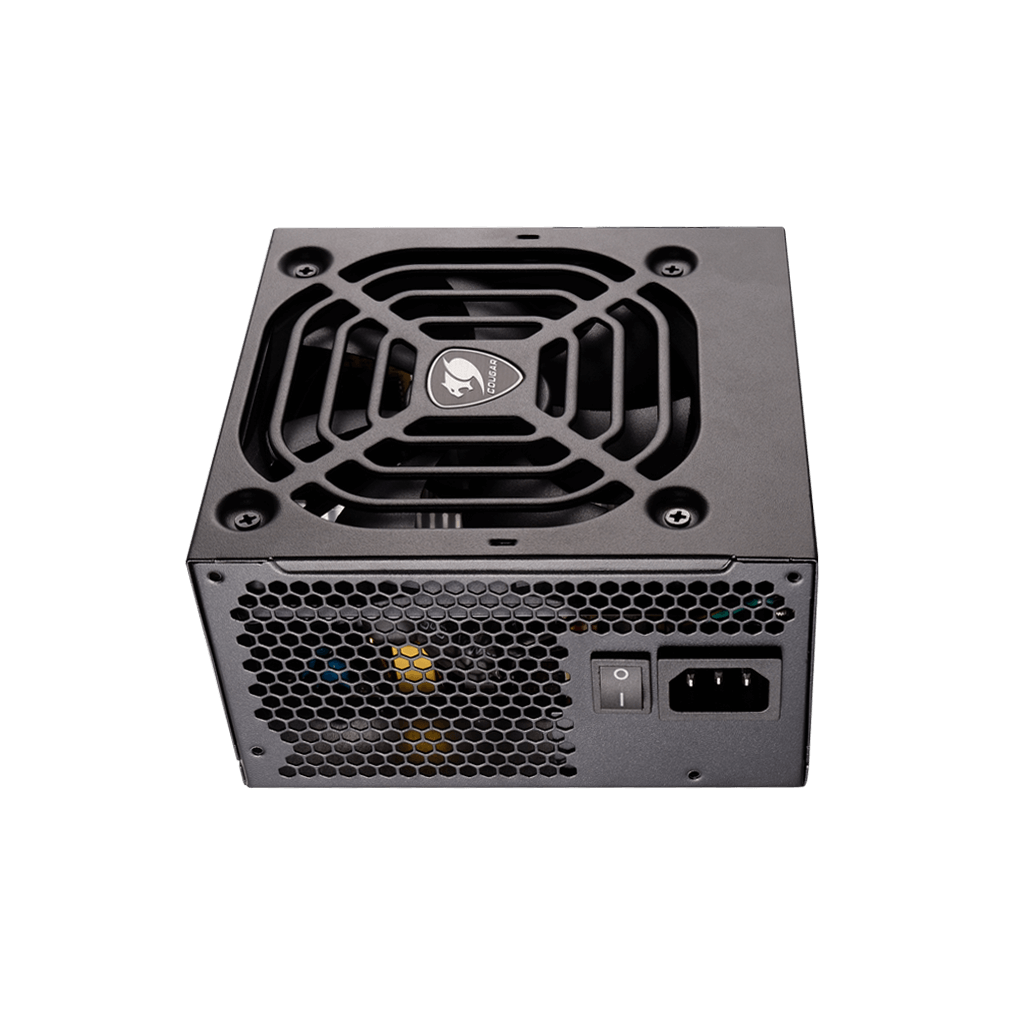

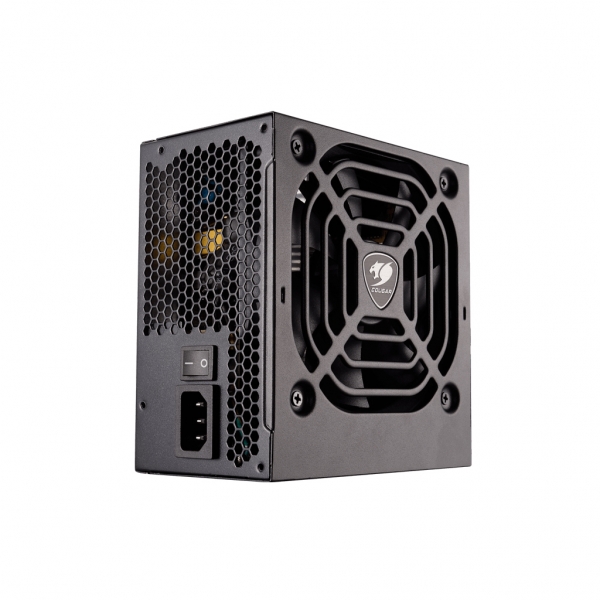

COUGAR STX550 STX650 STX750

Features

80-PLUS^®Efficiency

With STX, your computer’s power supply will reach a high level of efficiency. In doing so, it will keep power consumption at bay at a reasonable cost.

Massive Single +12V DC Output

Extreme stability for powerful graphic systems.

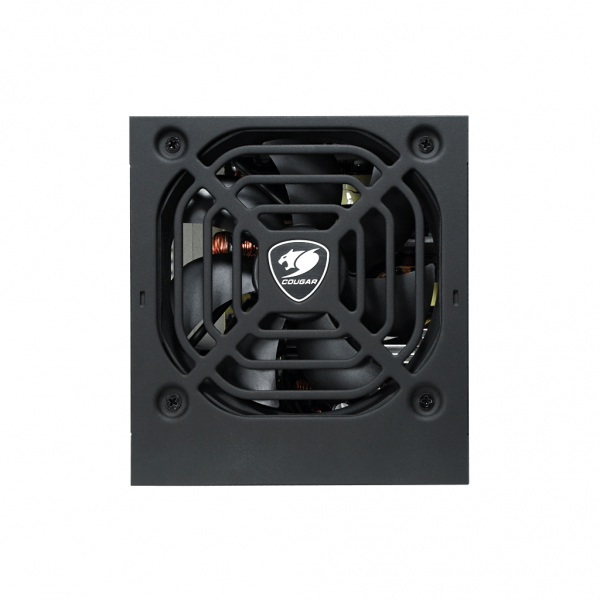

COUGAR STX - Fan Speed Fine-Tuning

Fan Speed Fine-Tuning

COUGAR STX’s fan will automatically adjust its speed according to the PSU’s temperature. This will ensure that no matter what you are doing, the fan noise will always be minimized.

COUGAR STX - Fan Speed Fine-Tuning

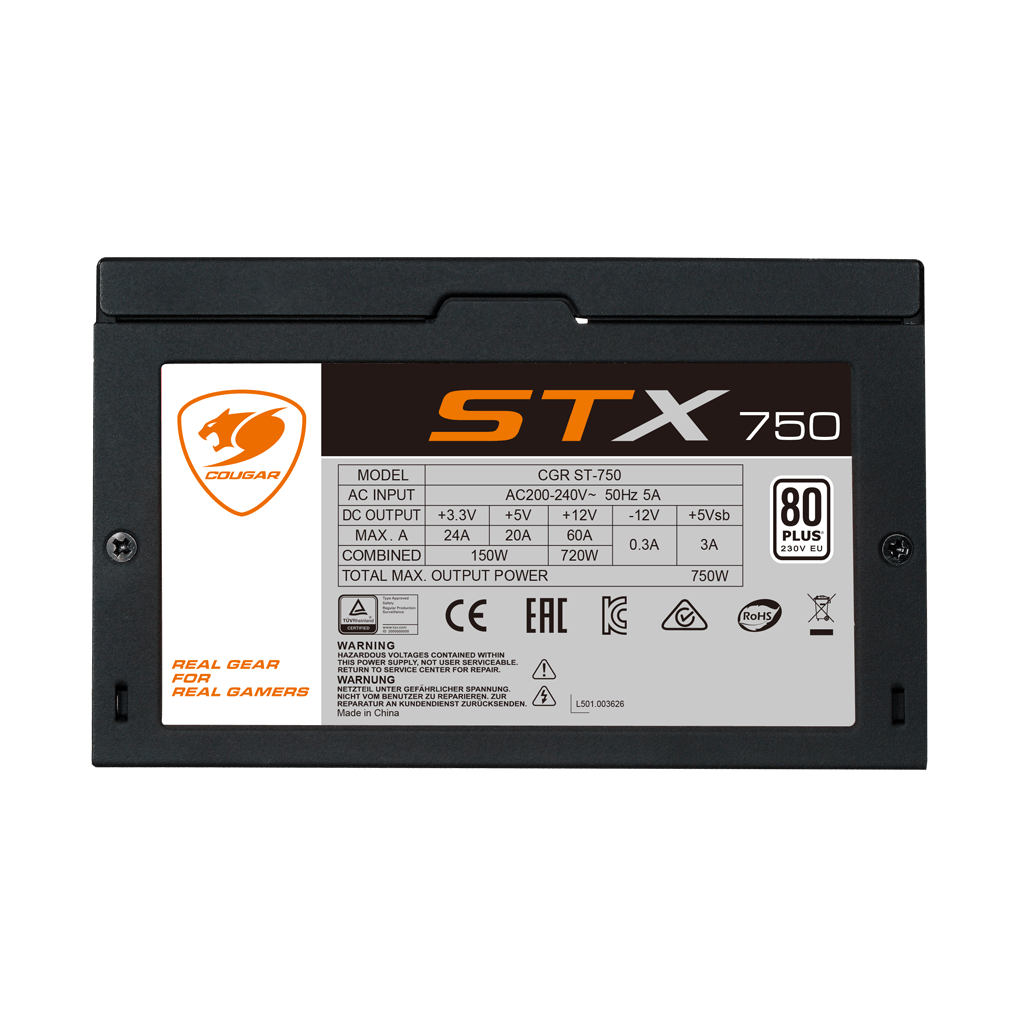

Specifications

Model Name	AC input	DC Output
		+3.3V	+5V	+12V	-12V	+5Vsb	Total
STX 550	200-240V~ 50Hz 5A	24A	20A	43A	0.3A	3A	550W
		120W		516W
STX 650		24A	20A	52A	0.3A	3A	650W
		130W		624W
STX 750		24A	20A	60A	0.3A	3A	750W
		150W		720W

Connector	Main	CPU	Peripheral	S-ATA	PCI-E
Pin	24(20+4) Pins	8(4+4) Pins	4 Pins	5 Pins	8(6+2) Pins
STX 550	1	1	3	6	2
STX 650	1	1	3	6	2
STX 750	1	1	3	6	4

Connectors	550W	650W	750W
Main	1X	1X	1X
CPU	1X	1X	1X
PCI-E	1X	1X	2X
PCI-E	–	–	–
HDD+FDD	1X	1X	–
HDD	–	–	1X
SATA	–	–	–
SATA	2X	2X	–
SATA	–	–	2X
