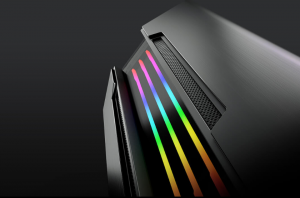

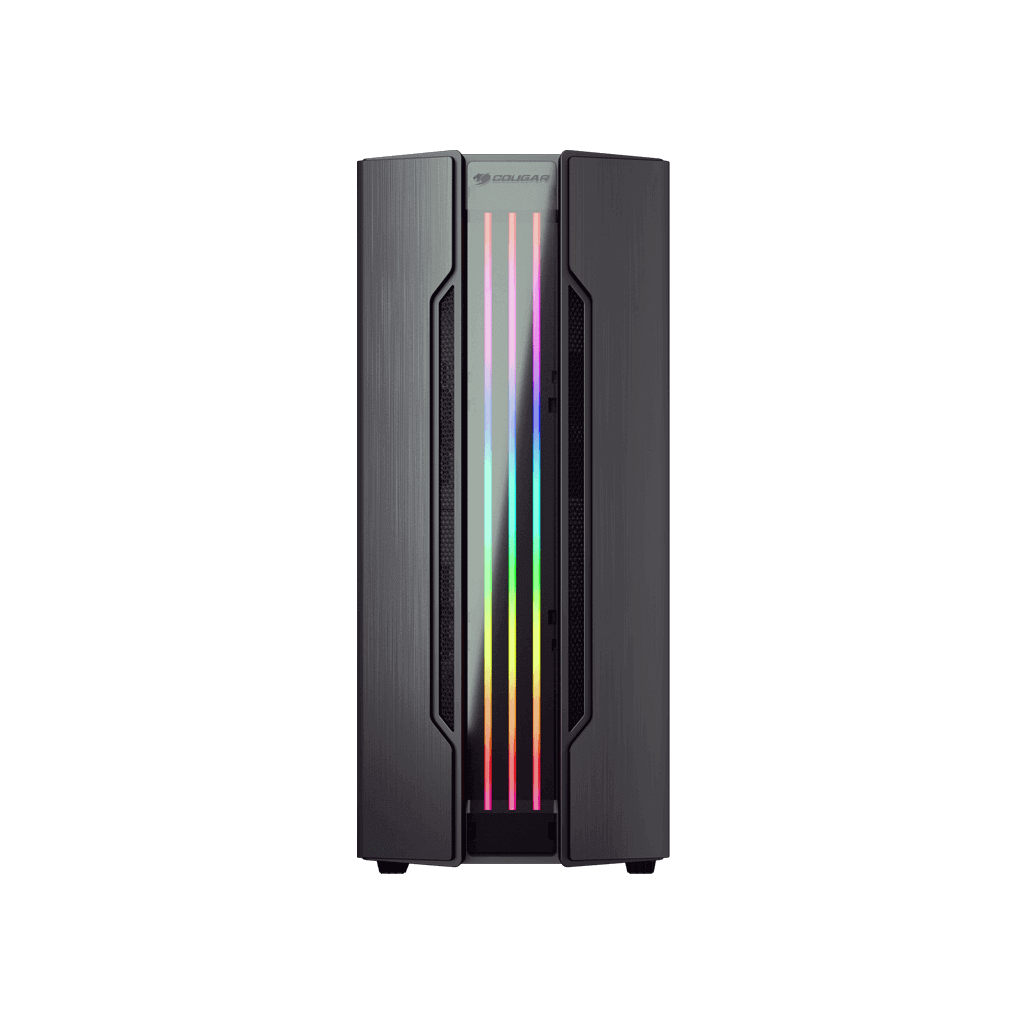

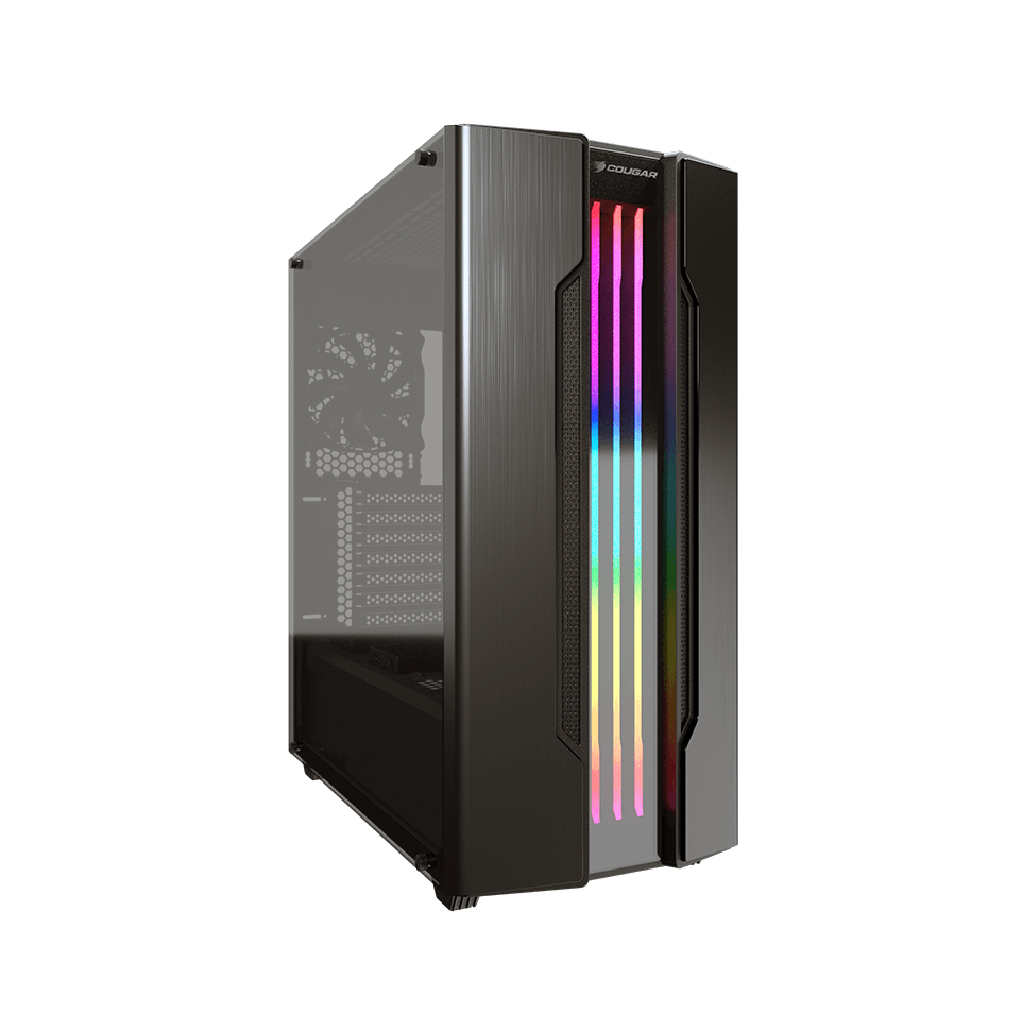

Integrated RGB Lighting
Gemini S features COUGAR’s exclusive Trelux integrated lighting system. This advanced design allows it to display fourteen amazing lighting effects without installing any additional devices in the case and control them through the integrated lighting button.
Trelux can also work connected to a COUGAR Core Box v2 or to a compatible motherboards’ 5V connection for system-wide lighting synchronization.
Top-notch Cooling
Water cooling radiator support |
Air cooling support |
![]() |
![]() |
Specifications
Product Name | Gemini S | |
Case Form Factor | Mid-Tower | |
Dimensions (WxHxD) | 210 x 495 x 463 (mm) 8.27 x 19.49 x 18.23 (in) |
|
Motherboard Formats | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |

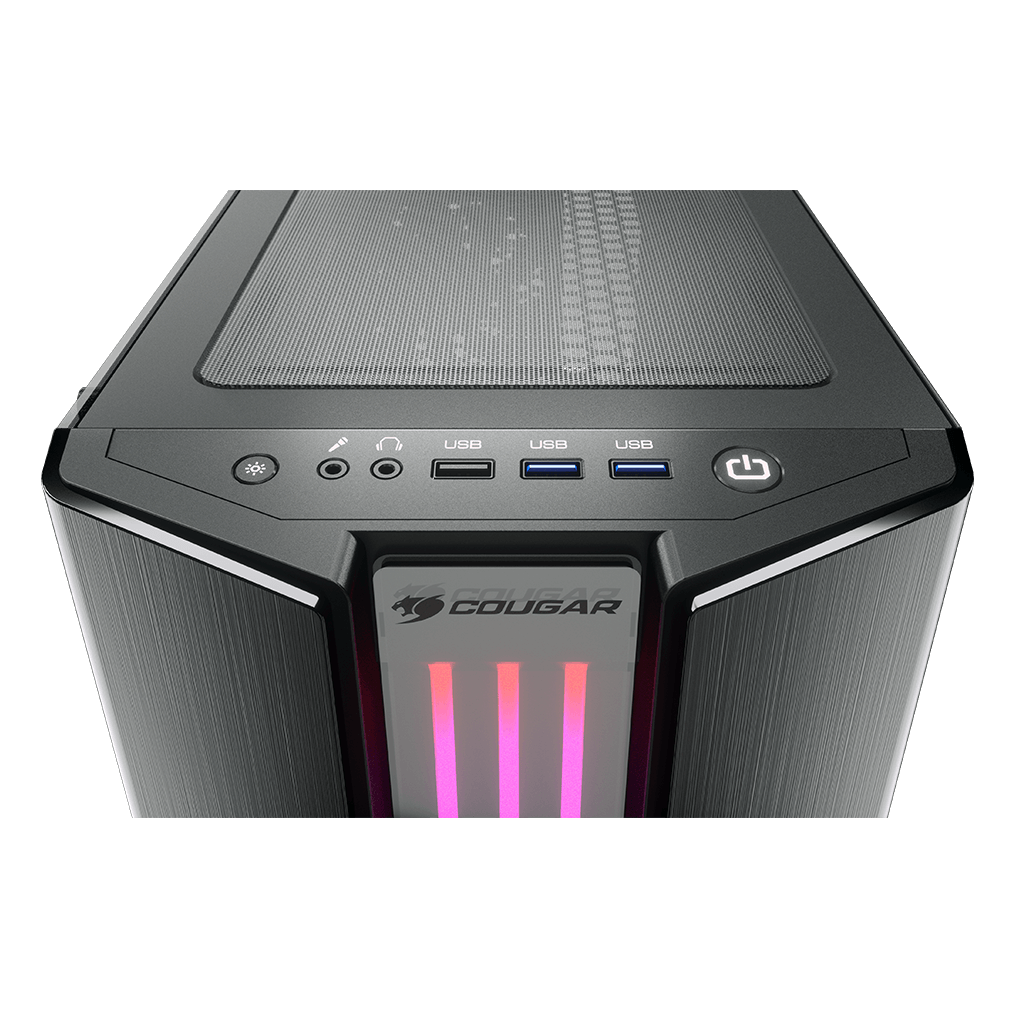

I/O Panel | USB3.0 x 2, USB2.0 x 1, Mic x 1 / Audio x 1, RGB Control Button | |
3.5″ Drive Bay | 2 | |
2.5″ Drive Bay | 5+2 (converted from 3.5″ drive bays) / (2 SSD trays included) | |
Expansion Slots | 7 | |
Cooling Fan Support | Front | 140mm x 2 / 120mm x 3 |
Top | 140mm x 2 / 120mm x 3 | |
Rear | 120mm x 1 (pre-installed) | |
PSU Cover | 120mm x 1 (for HDD Cooling) | |
Maximun Number of Fans | 8 Max. | |
Water Cooling Support | Front | 360mm / 240mm / 120mm |
Top | 360mm / 280mm / 240mm / 140mm / 120mm | |
Rear | 120mm | |
Max. Graphics Card Length | 410 (mm) / 16.14 (in) | |
Max. CPU Cooler Height | 175 (mm) / 6.89 (in) | |
PSU | Standard ATX PS2 | |
Max. PSU length | 200 (mm) / 7.9 (in) | |
Onboard Lighting System | Trelux Lighting with Addressable RGB LEDs and Dynamic Lighting Effects in the Front Panel | |
Cable Management | Yes |
