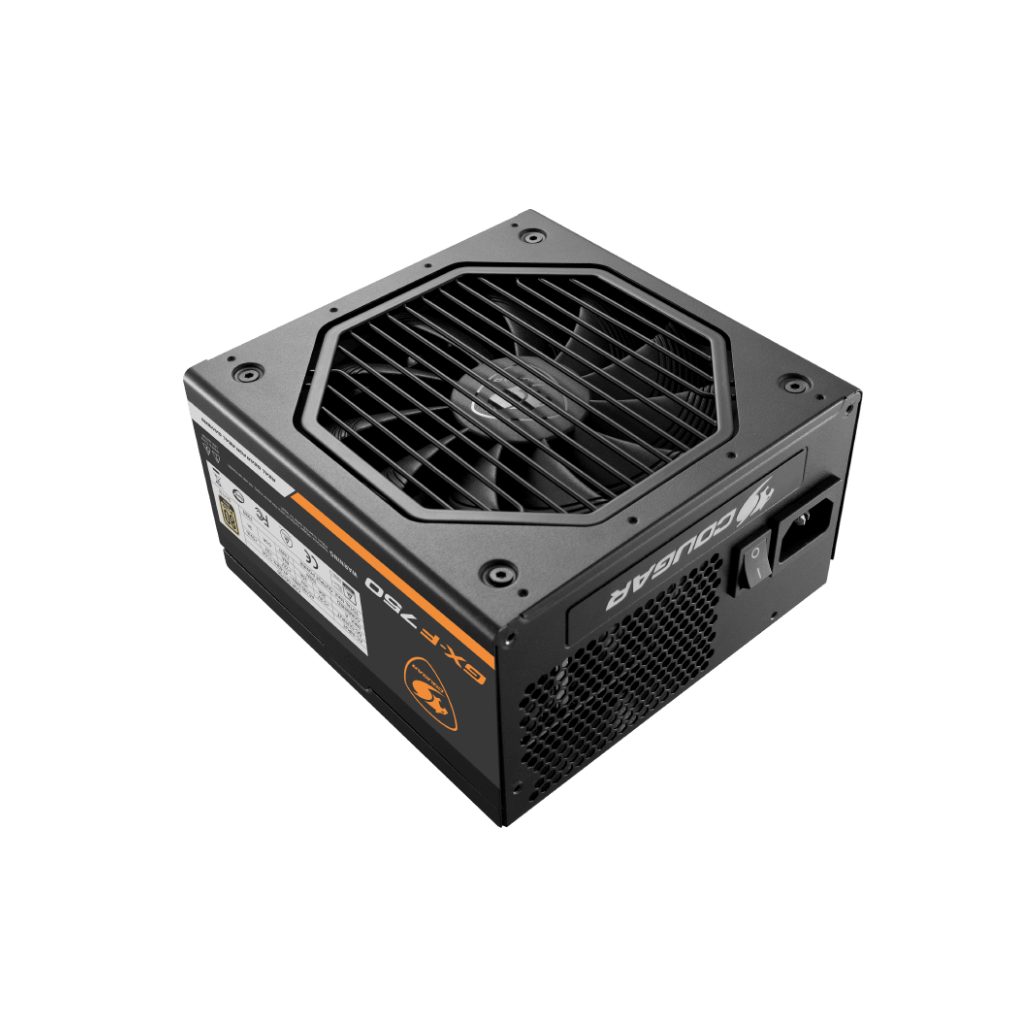

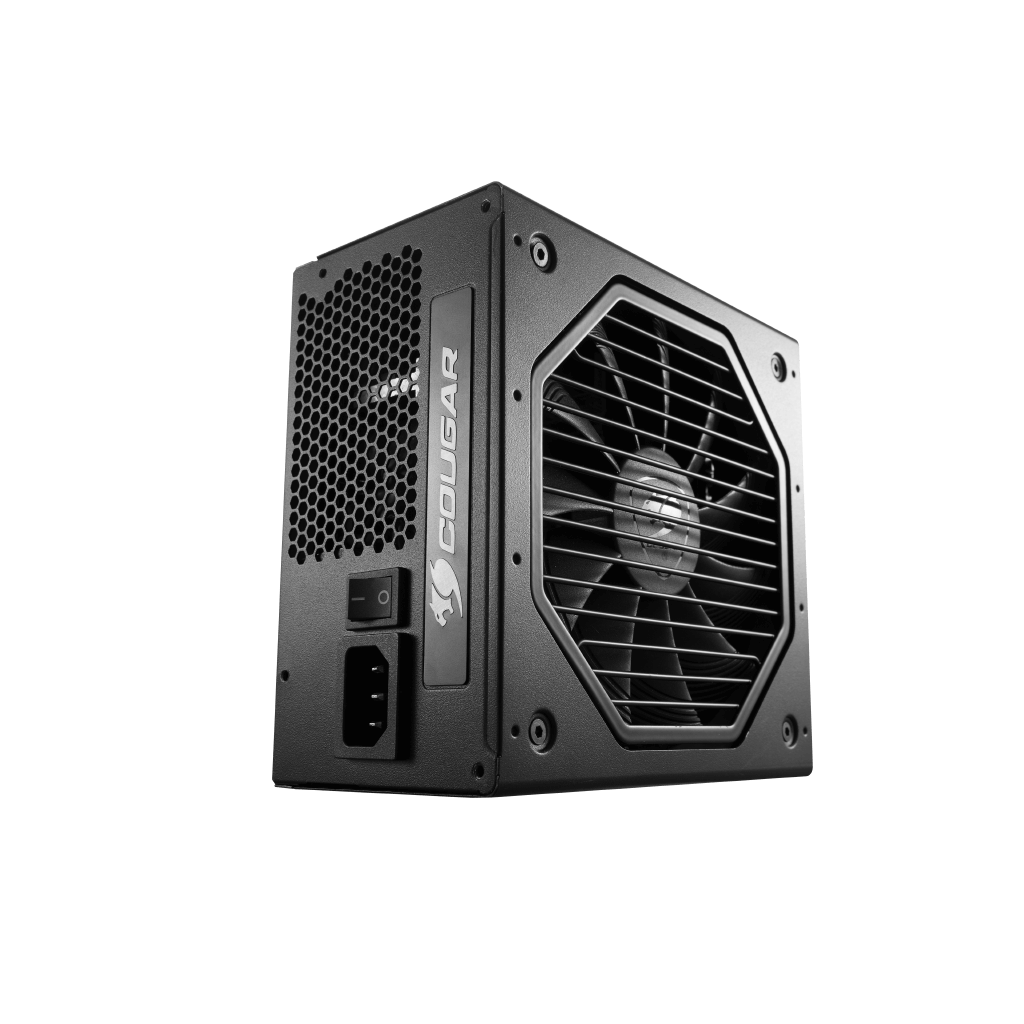

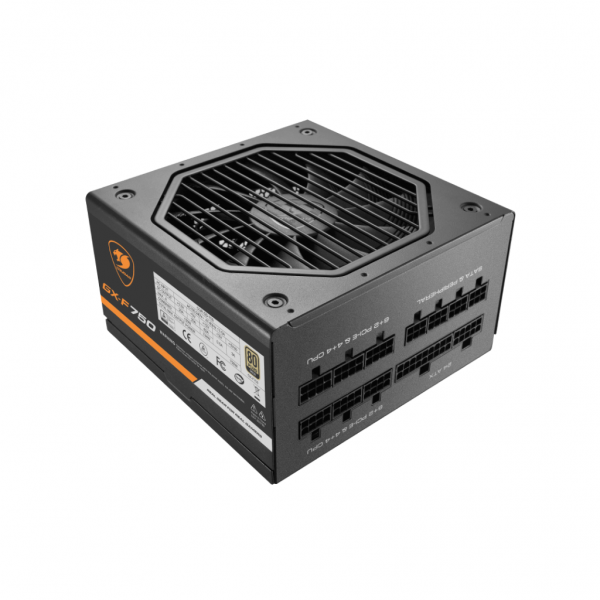

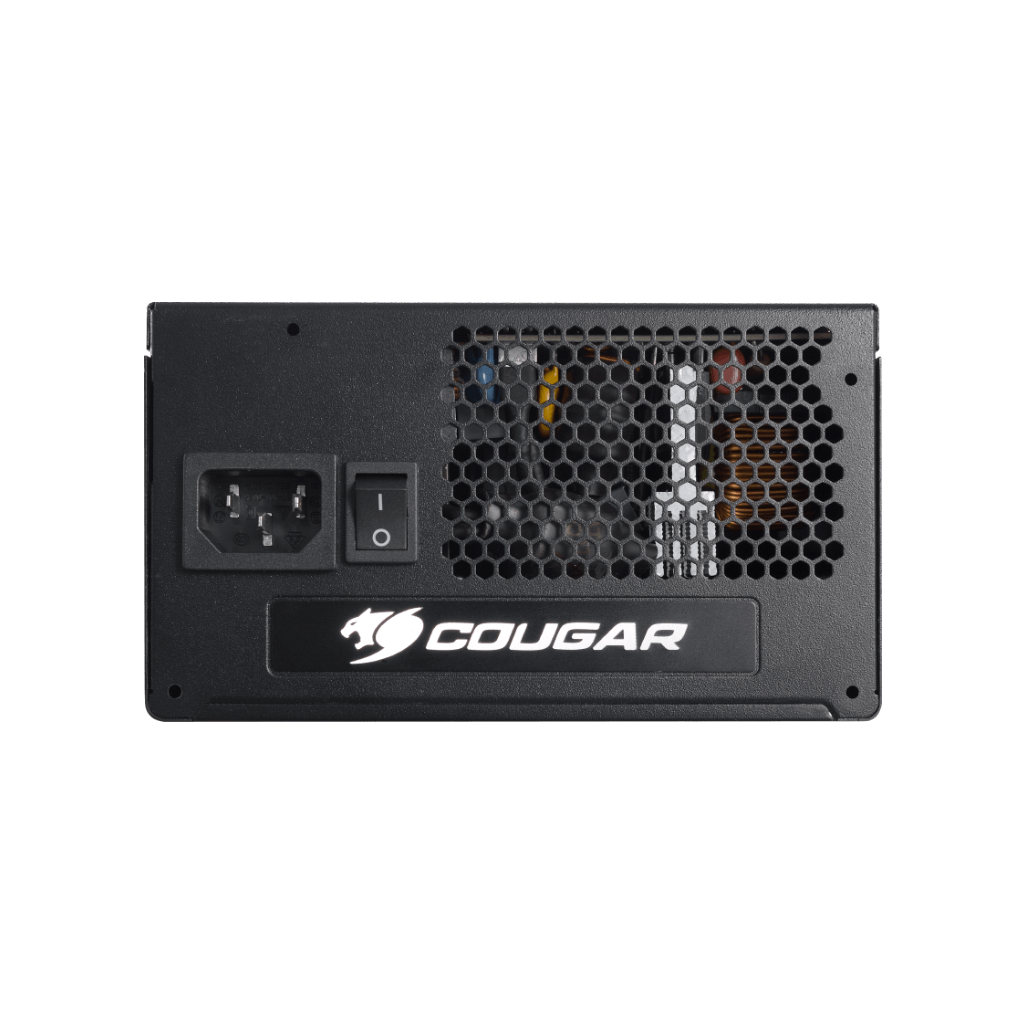

COUGAR 650W GX-F, 750W GX-F

Top Quality and High Performance

COUGAR GX-F is a high-quality 80 PLUS Gold certified PSU with flawless power delivery in 50°C environments. Compact, efficient, silent and durable, GX-F is the best answer for those looking for the best value in PSUs.

Online Shop in Thailand

Description

Efficient: A True Money-Saver

To help you save money on your electricity bill, GX-F features a highly efficient design that surpasses the 80 PLUS standard’s requirements.

Ultra-Durable

To protect your investment, two key features have been included in GX-F.

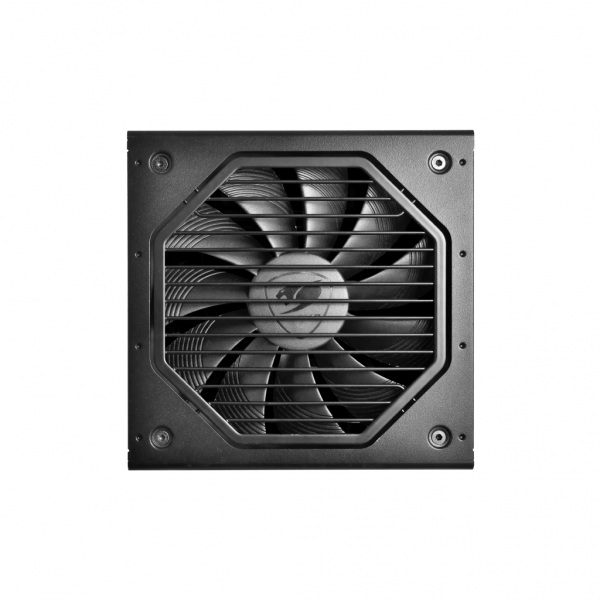

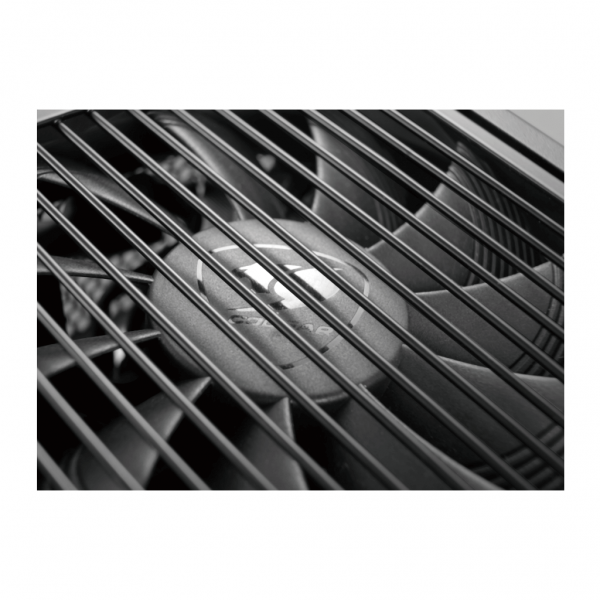

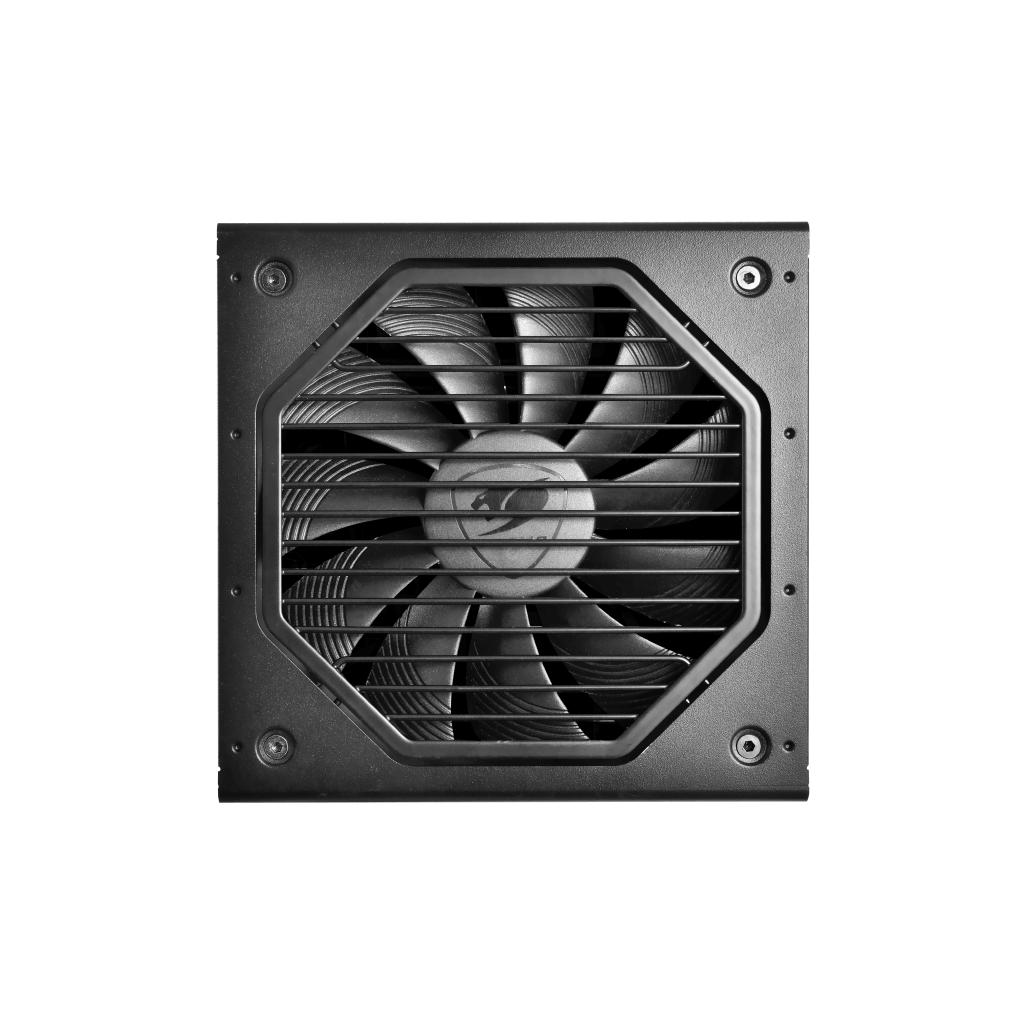

135mm HDB Fan

A key component of GX-F is its 135mm HDB fan. Using COUGAR’s patented groove design, this advanced fan’s blade curvature has been fine-tuned to reduce vibration, helping you enjoy a quieter gaming experience.

COUGAR Xformer + Refined Quality

COUGAR Xformer: This high-frequency transformer reduces copper loss and adapts to rising temperatures, while its PQ-Type core further increases efficiency and reliability while keeping the temperature under control.
Streamlined PCB wave soldering: A precise board-to-board connection improves the GX-F’s internal structure, eliminating intermediate cables that produce electrical losses and further enhancing its efficiency.

Specifications

Model Name	AC Input	DC output
Model Name	AC Input	+3.3V	+5V	+12V	-12V	+5Vsb	Total
GX-F650 CGR GD-650	AC100-240V 47-63Hz 10-5A	24A	24A	54A	0.35A	3A	650W
GX-F650 CGR GD-650	AC100-240V 47-63Hz 10-5A	130W		648W	0.35A	3A	650W
GX-F750 CGR GD-750	AC100-240V 47-63Hz 11-5A	25A	25A	62A	0.5A	3A	750W
GX-F750 CGR GD-750	AC100-240V 47-63Hz 11-5A	150W		744W	0.5A	3A	750W

Connector	Main	CPU	Peripherals	S-ATA	PCI-E
Pin	24(20+4) Pins	8(4+4) Pins	4 Pins	5 Pins	8(6+2) Pins
GX-F650	1	1	3	8	4
GX-F750	1	1	3	8	4
