DEEPCOOL NEW ARK90
NEW ARK 90 is E-ATX case with integrated liquid cooling with visible external flow systems, designed for users with a special preference for water-cooling solutions for their rigs. NEW ARK 90 completely eliminates the conventional technical barrier between DIY water-cooled towers to provide users with the perfect user experience. The tower is a perfect integration of extreme minimalist designs, glass panels, and RGB lighting to provide a unique visual aesthetics. Internal compartments offer excellent expandability and compatibility. The NEW ARK 90 comes with 4 independent cooling slots, dominating its competition by allowing users to easily create their personalized water-cooled rig
Online Shop in Thailand
- New Ark 90 comes with CAPTAIN Series Liquid Cooling System with 280mm Radiator & 2pcs 140mm RGB fans to achieve maximum cooling efficiency
- Specially designed external transparent water-tube with a flow-rotor on the front panel makes the dynamic flow rate of the coolant clearly visible and can also be used with DIY water-cooling systems
- Sync multi-point lighting system allows simultaneous color changing of the lighting on different parts of the system, enhances the aesthetics of your whole rig
- Tempered glass sections on the top panel, front panel and the whole left side-panel feature the texture of black obsidian and together with the integrated RGB lighting system allows users to display the key elements of their system
 |
 |

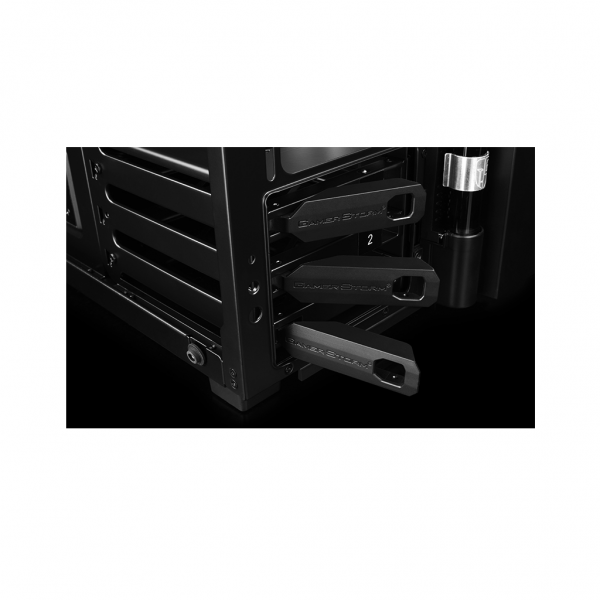

| The brilliant RGB Lighting System, easily controlled by manual buttons, provides an engaging visual experience | The HDD cage is removable for additional flexibility and features a pull type HDD rack |
 |
 |

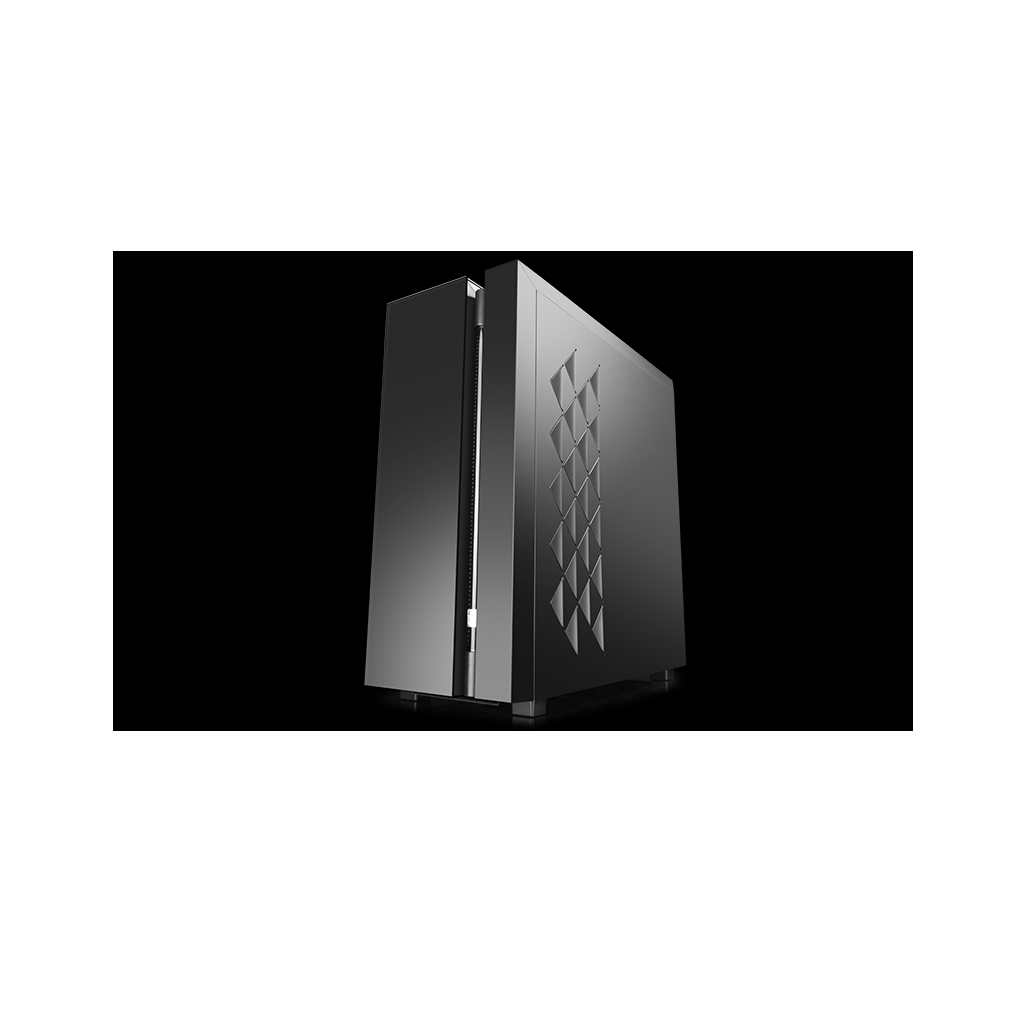

| The right side has an intriguing ventilation system with distinctive “dragon scale” venting, creates efficient air flow for quick heat dissipation | Innovative PSU shroud with RGB effect GAMER STORM Logo provides the perfect solution for color-conscious gamers and specialist system builders alike |
 |
 |

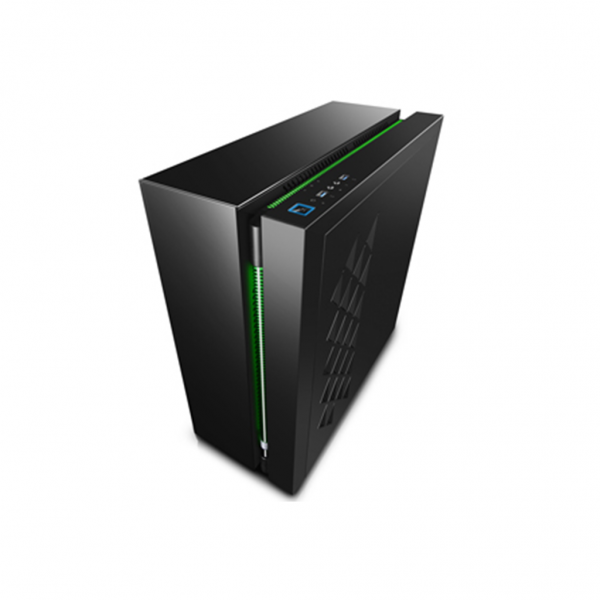

| The top panel comes with a special feature which allows them to be decorated with an RGB lighting strip | Ultra-wide 230 mm tower compartment with extra clearance (25 mm) for cables delivers extreme cooling performance and ease of installation |
Features
- Ultra-wide 230 mm tower compartment with extra clearance (25 mm) for cables delivers extreme cooling performance and ease of installation

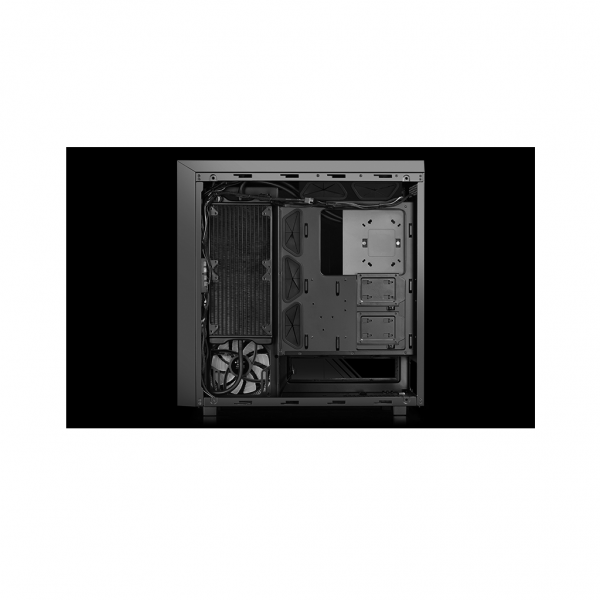

- Specially designed CAPTAIN Series Liquid Cooling System with 280mm Radiator & 2pcs 140mm RGB fans vertically installed on the side panel, can reduce the impact on CPU heat dissipation performance caused by the graphic card.
- Graphics card can be mounted vertically to provide the perfect showcase for it with the optional connection cable
- Specially designed external transparent water-tube with a flow-rotor on the front panel makes the dynamic flow rate of the coolant clearly visible and can also be used with DIY water-cooling systems
- Tempered glass sections on the top panel, front panel and the whole left side-panel feature the texture of black obsidian
- The brilliant RGB Lighting System, easily controlled by manual buttons, provides an engaging visual experience
Application For
|
Intel |
AMD |
|
LGA20XX/LGA1366/LGA115X |
AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
Technical Spec
| Motherboards | E-ATX/ATX/M-ATX/Mini-ITX (MAX 305×276mm) |
| Materials | SGCC+Plastic (ABS)+Tempered Glass (Panel thickness: 0.8~1.0mm) |
| Product Dimension (LxWxH) | 530×232×545.5mm |
| Net Weight | 14.34kg |
| Gross Weight | 17.77kg |
| 5.25″ Drive Bays | 0 |
| 3.5″ Drive Bays | 3 |
| 2.5″ Drive Bays | 3+3 |

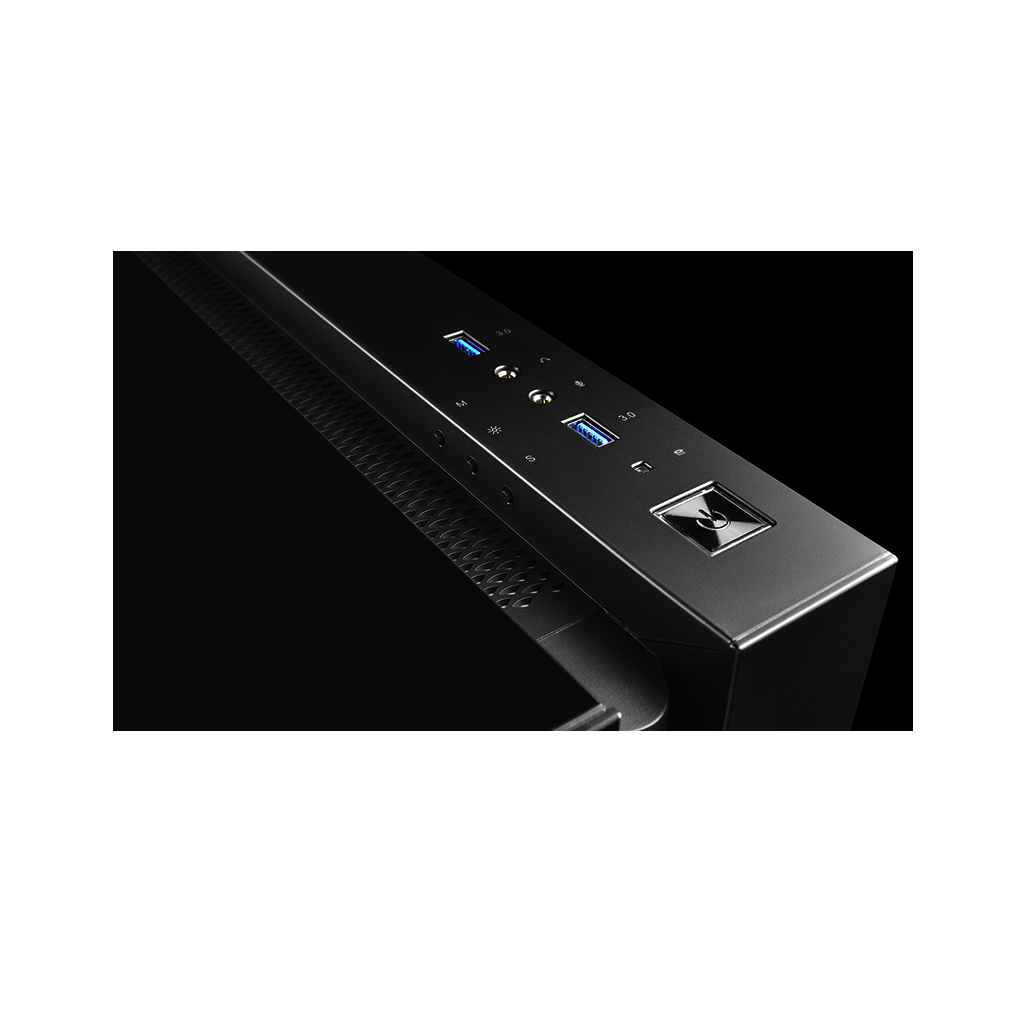

| I/O Panel | 2×USB3.0 /Audio(HD)×1/Mic×1/Manual Controller for RGB |
| Expansion Slots | 8 (plus 2 extra slots for vertical VGA card installation) |
| Cooling Fans Support | Pre-installed: Rear: 1×140mm RGB fan; Side: 3×140mm RGB fan; Optional: Top:3×120mm fan; Front: 3×120mm fan |
| Power Supply Support | ATX PS2 (maximum length: 200mm) |
| CPU Cooler Compatibility | 186mm height limit Liquid Cooler: Front: 120/240mm or 360mm (Remove HDD cage); Top: 120/240/360mm; Rear: 120/140mm |
| Graphic Card Clearance | 310mm(Horizontal mounting)/400mm(Vertical mounting) |
| Carton Dimension | 625×335×627mm(L×W×H) |
| Water Block Dimensions | 92.5×93×85mm(L×W×H) |
| Radiator Dimensions | 330×125×28mm(L×W×H) (aluminum material) |
| Fan Dimensions | 140×140×25mm RGB Fan×4pcs |
| Fan Speed | 500±200-1800±10%RPM (4Pin) |
| Fan Air Flow | 90.14 CFM (MAX) Each 140mm Fan |
| Fan Noise Level | 17.6~35.3dB(A) |
| Fan Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12VDC |
| Fan Rated Current | 0.44±10%A(MAX) Each Fan (Including RGB lights) |
| Fan Power Consumption | 5.28W Each |
| Pump Connector | 3Pin |
| Pump Operating Voltage | 6~13.8VDC |
| Pump Rated Voltage | 12VDC |
| Pump Speed | 2300±10%RPM |
| Pump Current | 0.2A(MAX) |
| Pump Power Consumption | 2.4W |
| EAN | 6933412713425 |
| P/N | DP-ATXLCS-NARK90BK |
Product Dimensions
