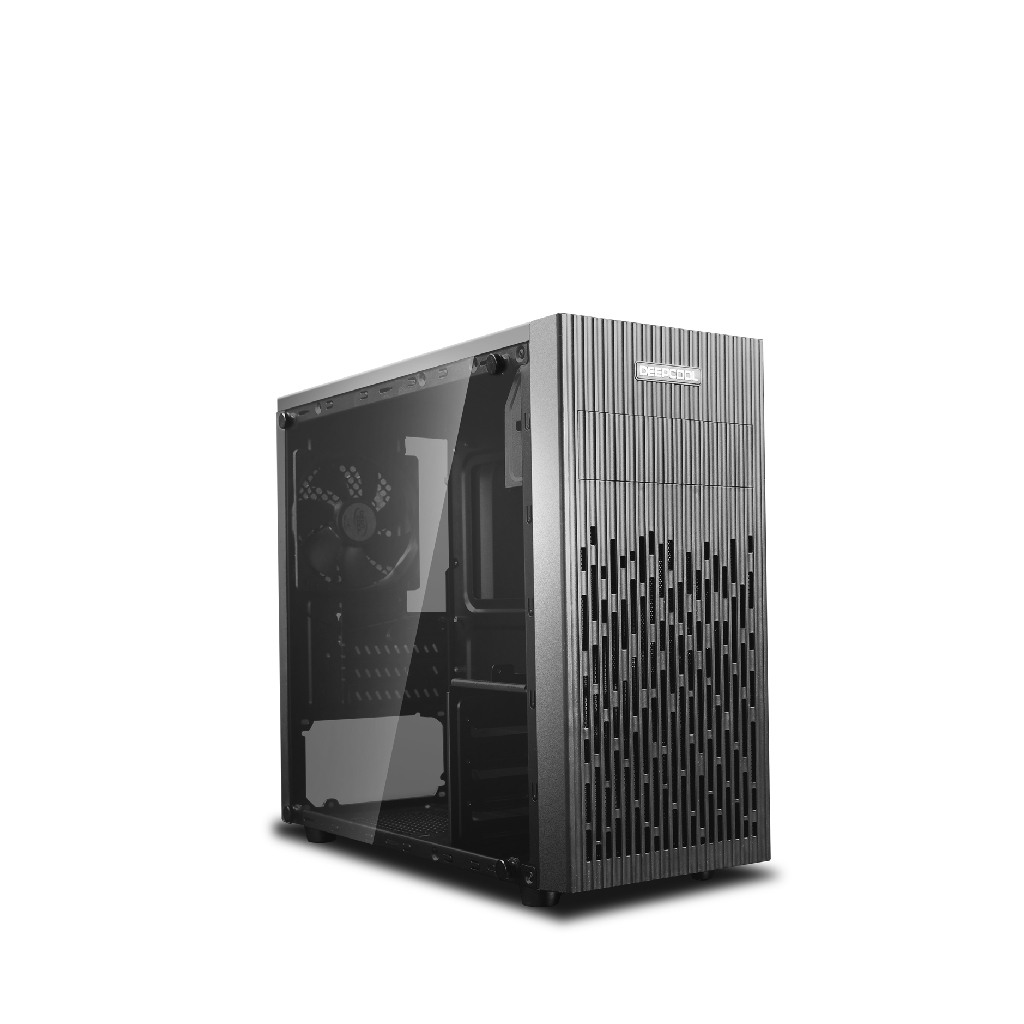

DEEPCOOL MATREXX 30
Compact M-ATX case for solid performance
- Compatible with graphics cards
- Space for cable management
- The lower power supply design
- The top panel is fitted with USB ports, headphone jack, and switch
Features
- The classic M-ATX structure is compatible with M-ATX and ITX motherboards.
- Equipped larger area of air-intake mesh at front panel.
- Supports 120mm radiator/fan in the front and pre-installed 120mm black fan in the rear.
- The full-sized tempered glass side panel provides optimal view of the interior.
- Removable 5.25 and 3.5 inch installation positions, providing limitless DIY possibilities.
- Compatible with graphics cards up to 250mm.
- The ridge on the back panel provides 14.8 mm of space for cable management.
Specifications
| Motherboards | Micro ATX/Mini-ITX |
| Case Type | Mini Tower |
| Materials | ABS+SPCC (Steel panel thickness: 0.5mm) Tempered Glass side panel (thickness: 3mm） |
| Product Dimensions (L×W×H) | 405.8×193×378.2mm |
| Net Weight | 3.62 Kg |
| Gross Weight | 4.33 kg |
| 5.25″ Drive Bays | 1 |
| 3.5″ Drive Bays | 3 |
| 2.5″ Drive Bays | 2 |
| I/O Ports | USB2.0×1, USB3.0×1, Audio×1, Mic×1 |
| Expansion Slots | 4 |
| Cooling Fans Support | Pre-installed: 1×120mm black fan at rear Optional: Front: 1×120mm |
| Cable Management | 15mm Clearance |
| Liquid Cooler Support | Rear: 120mm radiator |
| Power Supply Type | ATX PS2 (Length less than 170mm) |
| CPU Cooler Height Limit | 151mm |
| Graphics-card Length Limit | 250mm(horizontal) |
| Carton Dimension (LxWxH) | 415×240×465mm |
| EAN | 6933412713715 |
| P/N | DP-MATX-MATREXX30 |
