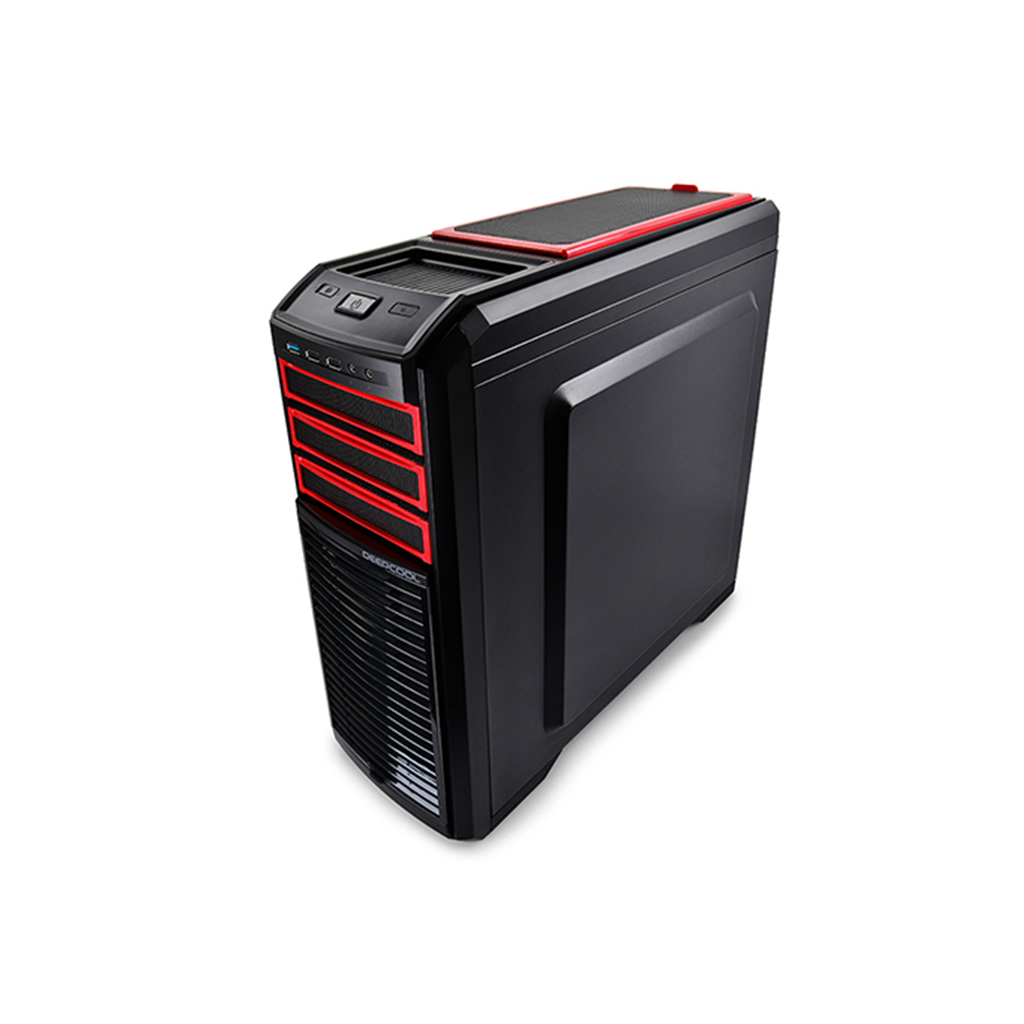

KENDOMEN is an ATX PC case capable of accommodating ATX, Micro ATX and Mini ITX motherboards. Classic exteriors and compact interiors. The case features excellent cooling performance, simple installation, superior expandability and easy future maintenance.
Online Shop in Thailand
For DEEPCOOL KENDOMEN RD:
For DEEPCOOL KENDOMEN Ti:
Excellent Cooling Performance

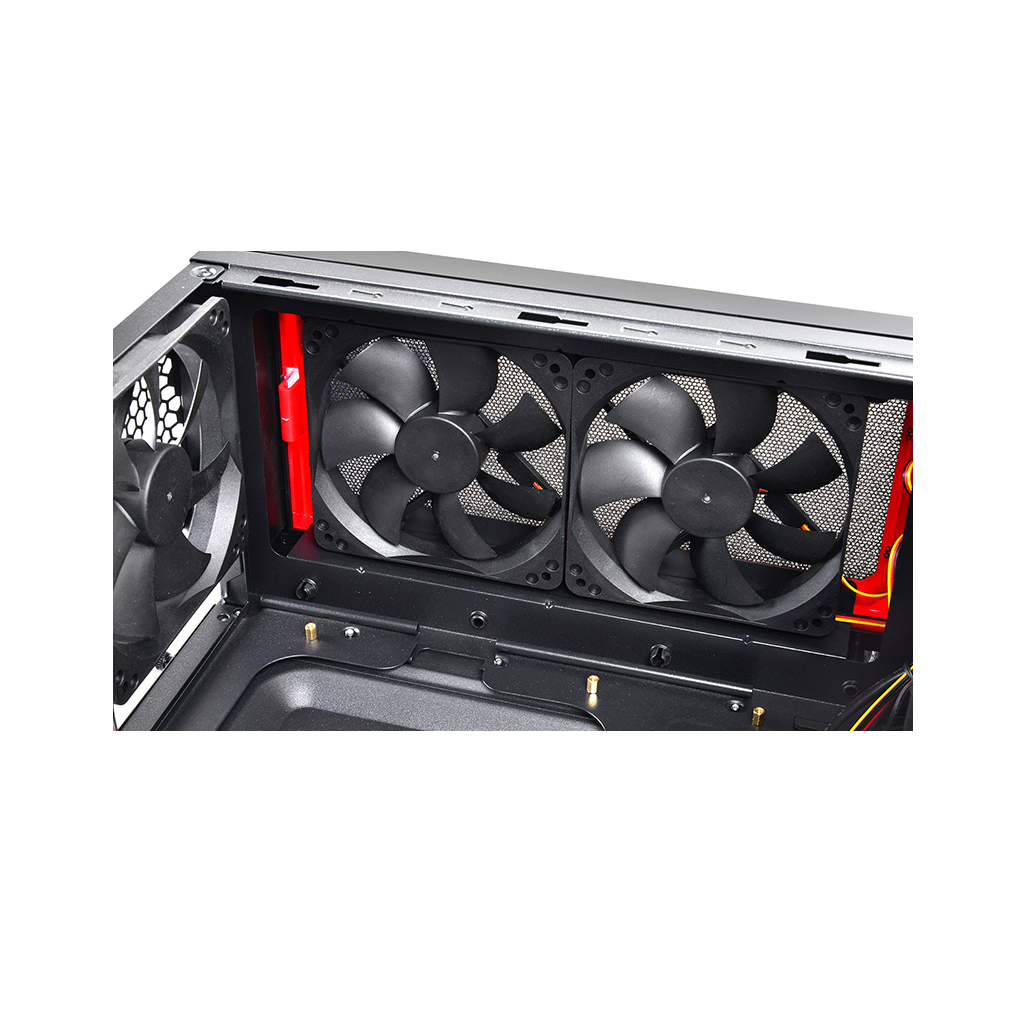

The KENDOMEN comes with 2 front-mounted LED intake fans, 2 top-mounted exhaust fans (supports liquid cooler instead), and 1 rear-mounted fan. 5 pre-installed fans deliver clean and powerful airflow, allowing builders to skip the fans go directly to the system itself, saving cost and time required to build their prized rig. The fan-speed adjustment switch ensures impressive performance while maintaining low noise.

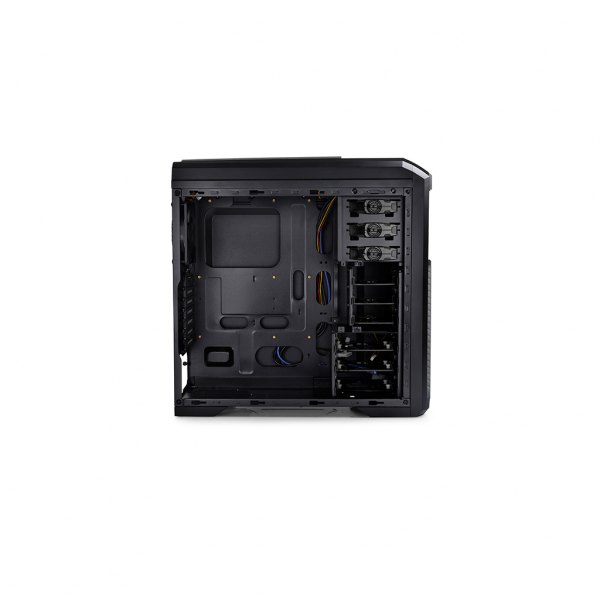

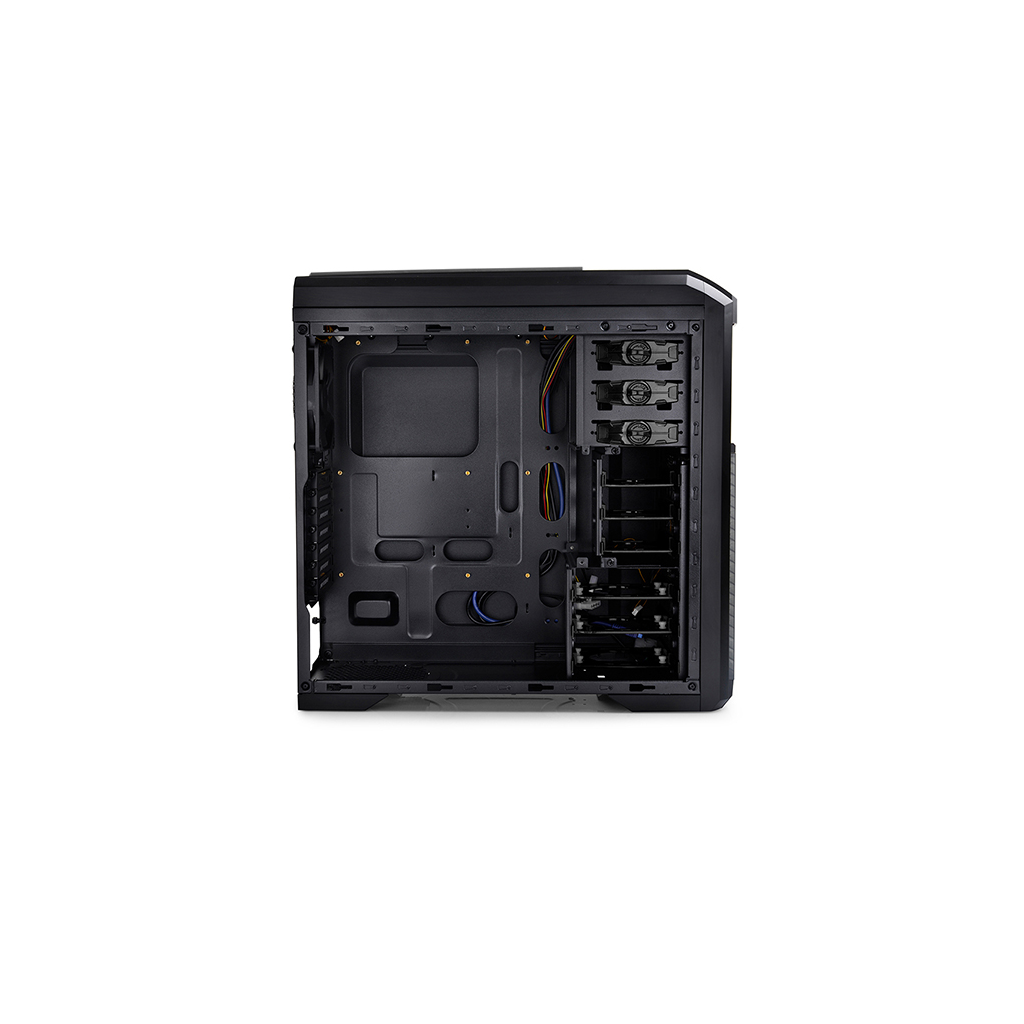

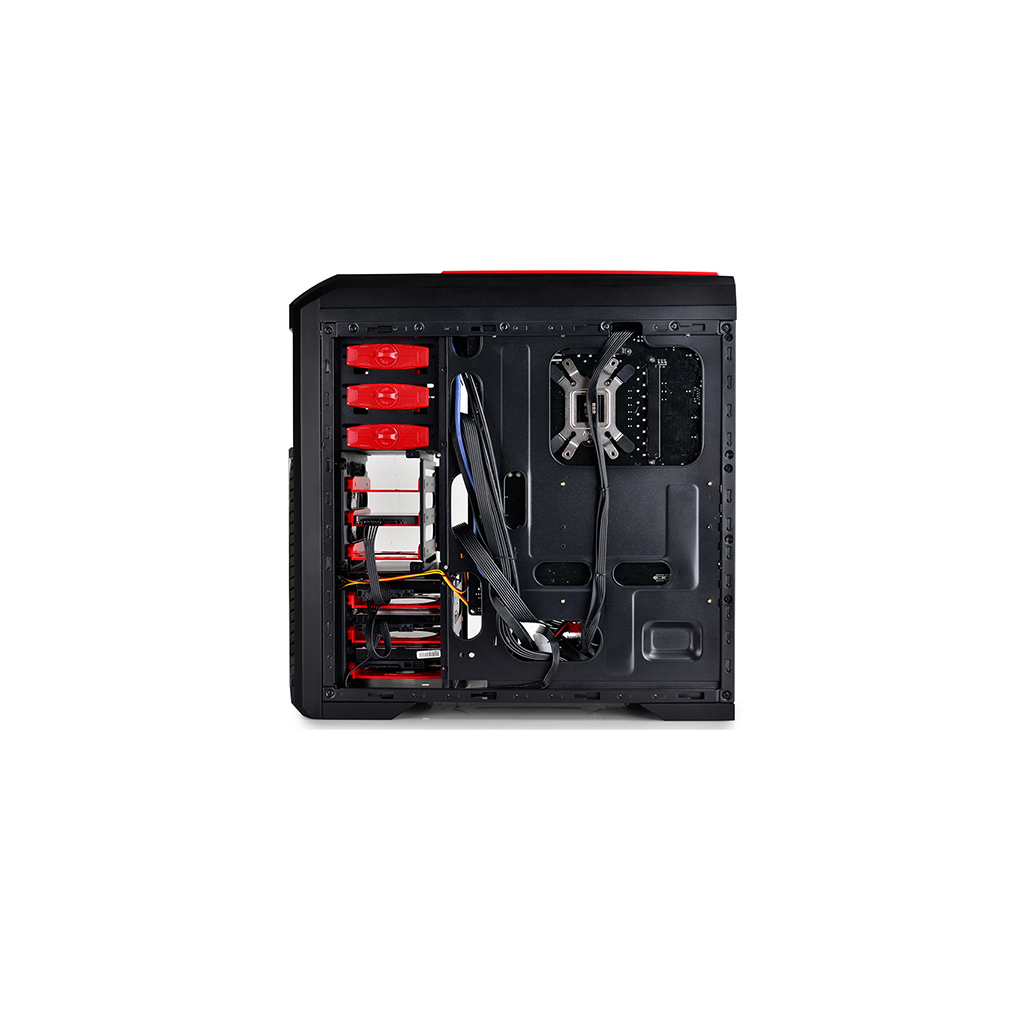

The case features multiple designs that simplify the building process. These designs include: motherboard platform; wide cutout behind the motherboard tray (to accommodate back plate mounted CPU cooler); tool-free ODD/HDD installation; and 15 mm openings for excellent management.

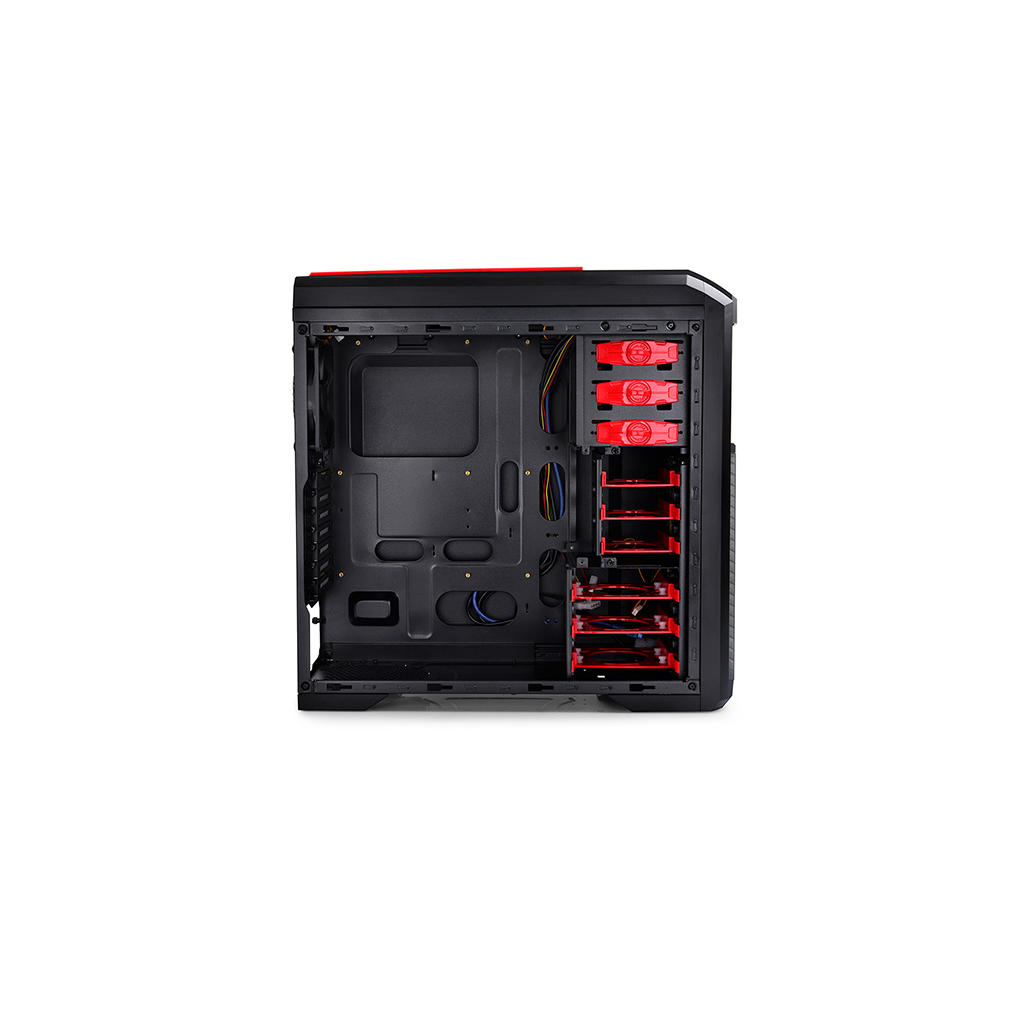

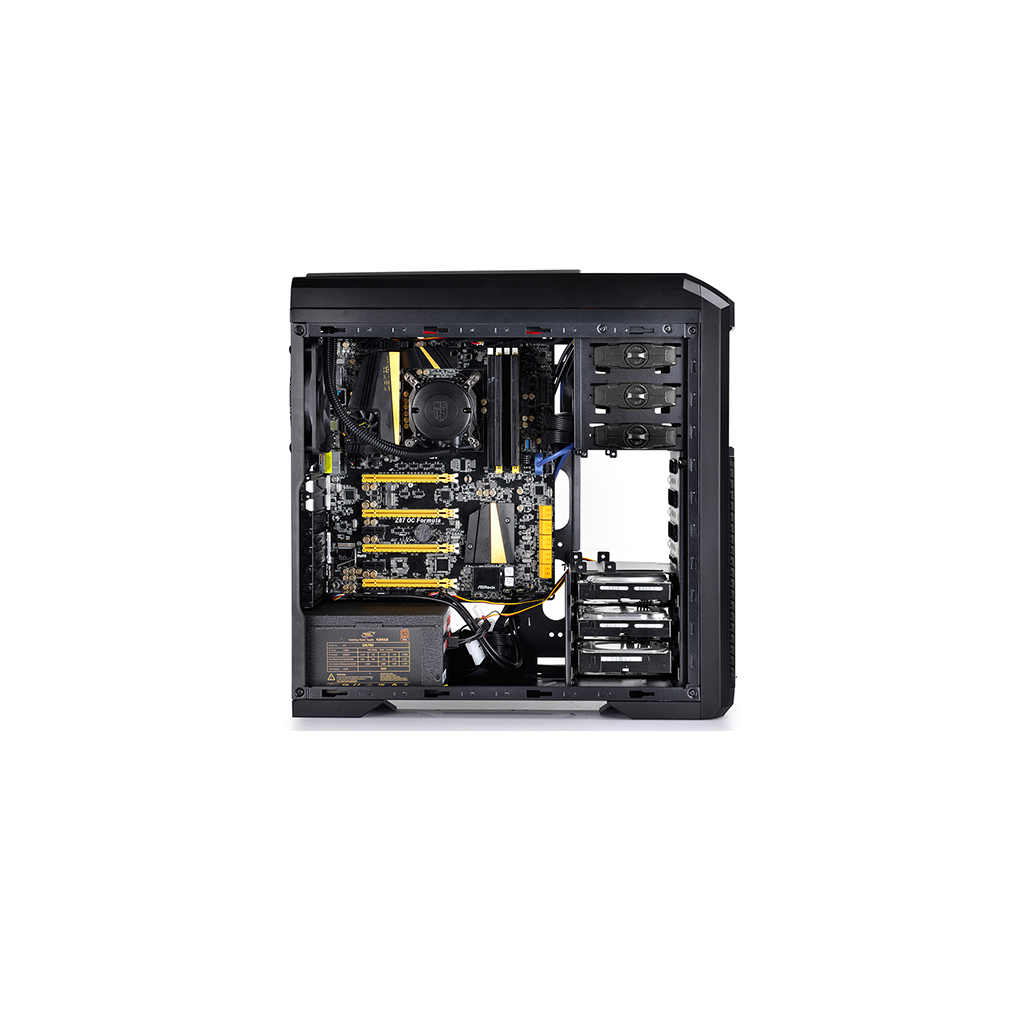

KENDOMEN offers plenty of space for expanded storage, including: 3x 5.25-inch bays, 3x 3.5-inch bays (also compatible with 2.5-inch SSD/HDD), and 3x 2.5-inch drive bays. Removing the 2.5-inch drive cage allows the installation of a 15.7-inch or 400 mm-long graphic card while providing 7 expansion slots, making KENDOMEN the best chassis for the most enthusiastic builder.
Easy Future Maintaining

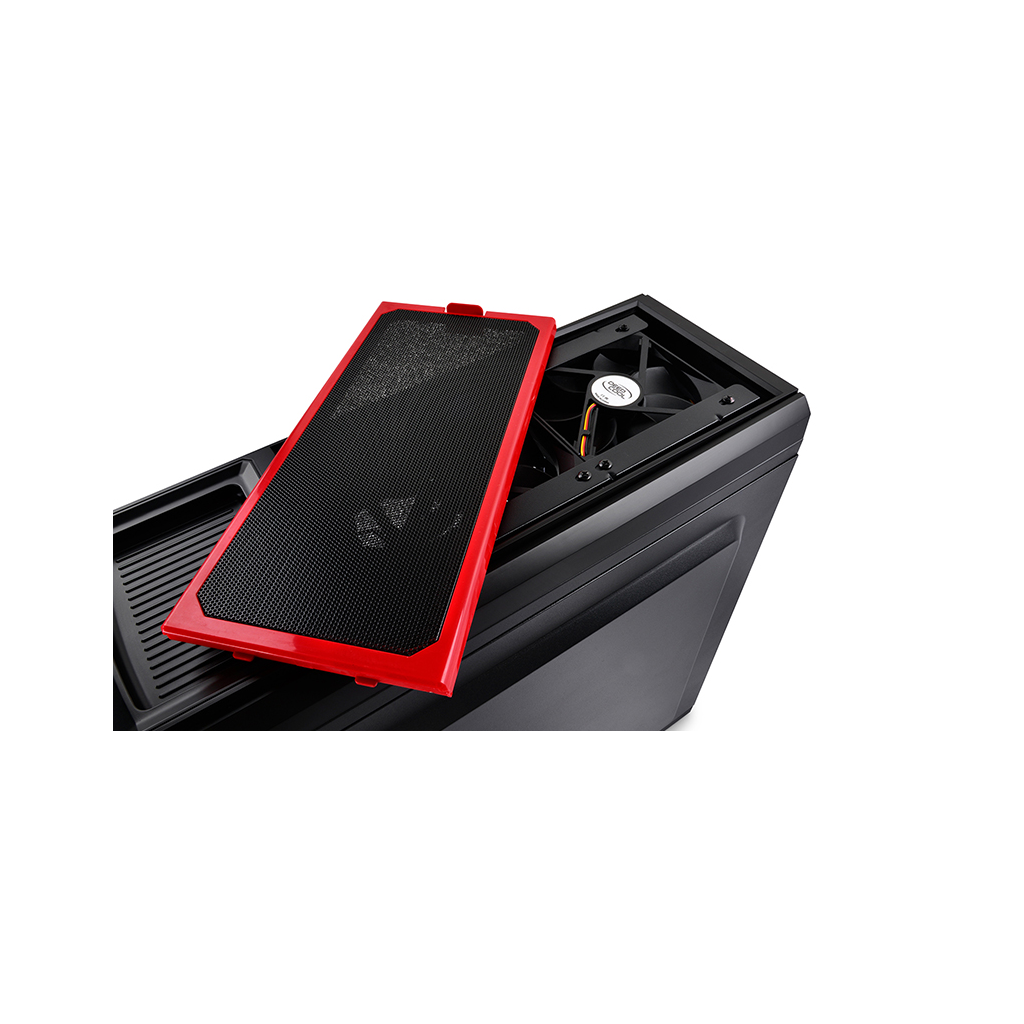

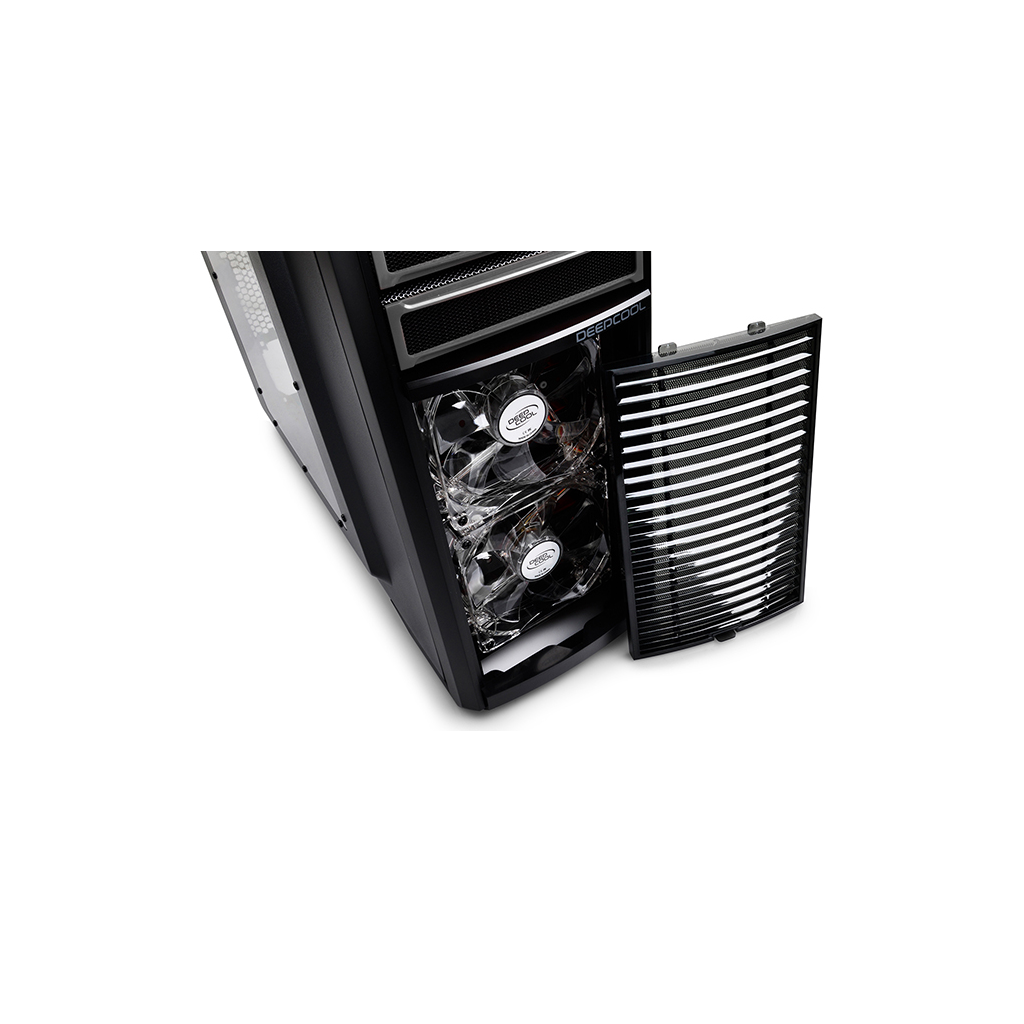

The top, front and bottom panels of KENDOMEN are equipped with filters that protect against dust and dirt. Easy removal design for the top and front panels make cleaning so much easier.
Connection and Control

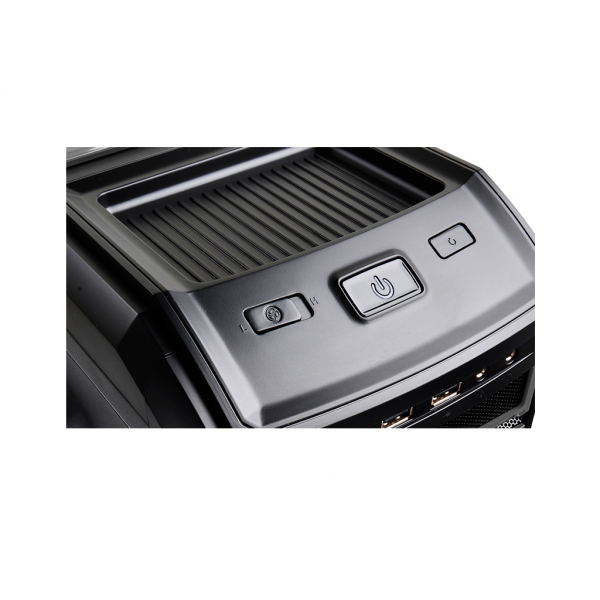

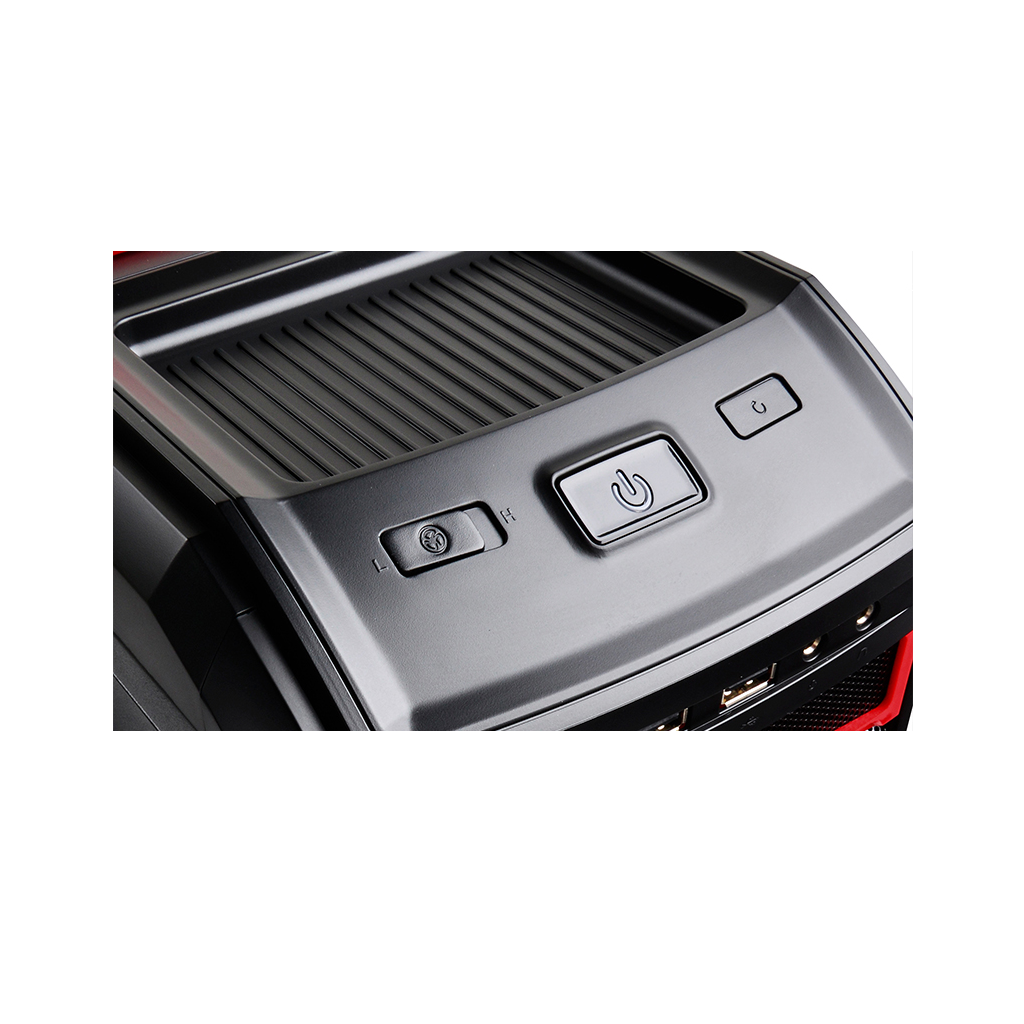

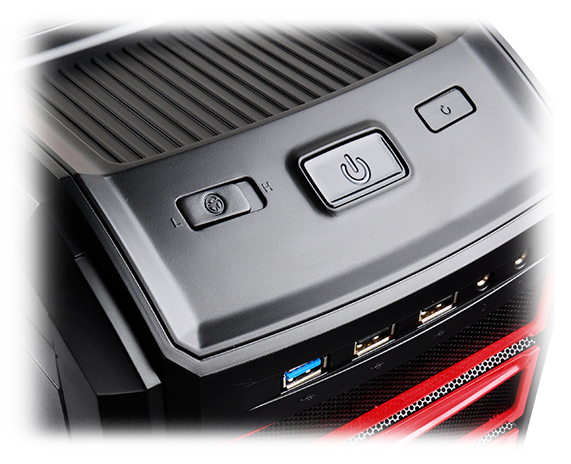

The control platform and I/O ports of KENDOMEN are located at an easily accessible top portion of the front panel. Fan speed controller allows easy management of noise level and cooling performance. USB 3.0 ports offer rapid data exchange between different devices.
- Support top-mounting of 240 mm Liquid Cooler
- Fan-speed adjusting switch to control 2 fans at the same time
- 5 pre-installed fans (2x 120 mm LED fan and 3x 120 mm black fan)
- 1x USB 3.0 + 2x USB 2.0 ports
- Easy-removal design of the top/front panels for quick installation, removal, and cleaning
- Tool-free installation design for ODD/HDD (rubber buffer for 3.5-inch HDD)
- 7x expansion slots
- PSU rubber buffer and dust filter
- Wide CPU cutout to accommodate CPU cooler installation
- Floor-mounted PSU for effective cooling and more spacious interiors
- Support cable management
- Support ATX/MicroATX/MINI-ITX motherboards
- See-through side window

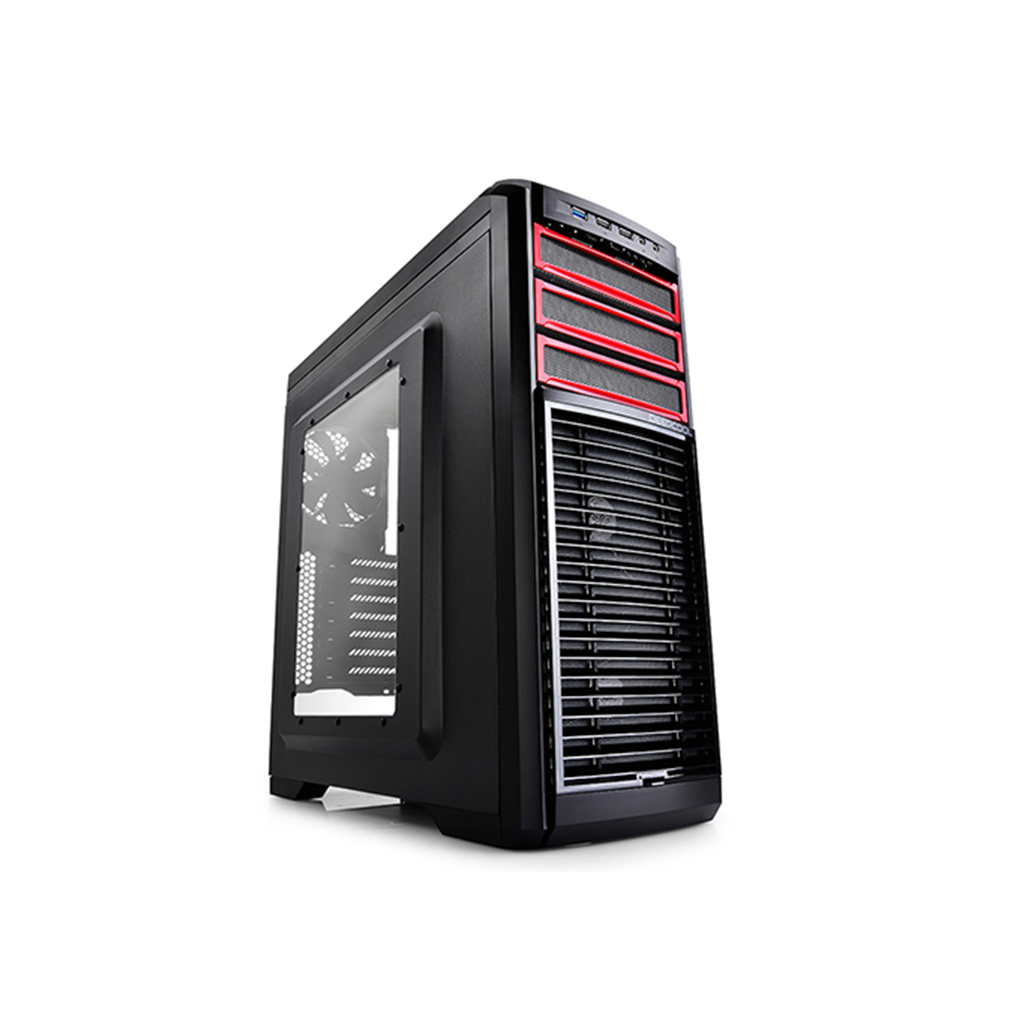

- KENDOMEN RD: Red decor and LED fan

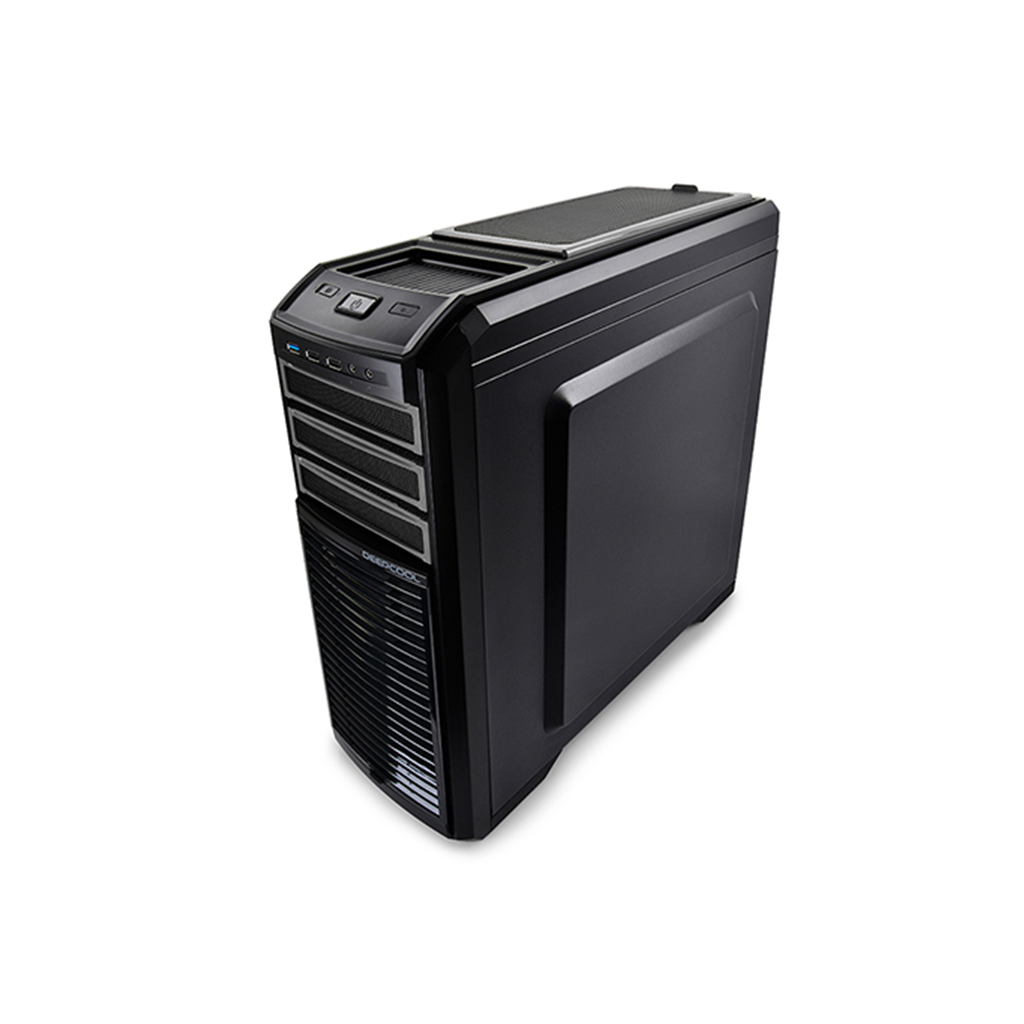

- KENDOMEN TI: Titanium gray decor and white LED fan
Motherboards ATX/MICRO ATX/MINI-ITX Materials SECC+PLASTIC (ABS)(Panel thickness: 0.7mm) Dimension (LxWxH) 491*200*486mm Net Weight 5.76kg Gross Weight 6.66kg 5.25″ Drive Bays 3 (all tool-free installation) 3.5″ Drive Bays 3 (all tool-free installation) 2.5″ Drive Bays 3 (tool-free)+ 3 (Switchable from 3.5″) I/O Panel 1×USB3.0/2×USB2.0/Audio(HD)×1/Mic×1 Expansion Slots 7 Cooling Fans Pre-installed: Rear: 1×120mm fan; Front: 2×120mm LED fan; Top: 2×120mm fan Power Supply Type ATX PS2 CPU Cooler Compatibility 160mm height/Liquid Cooler: 120/240mm at top, 120mm at rear VGA Compatibility 310mm Package dimension L530mm*W250mm*H550mm EAN (RD) 6933412712701 P/N (RD) DP-CCATX-KDM5FBKRD EAN(TI) 6933412712695 P/N(TI) DP-CCATX-KDM5FBKTI
Z3 thermal gel consists of high thermal conductivity to allow high performance heat dissipation.
- Excellent Thermal Conductivity
Density of Z3 is compatible with most polished CPU cooler for maximum heat dissipation.
- High Compatibility for Most CPU Cooler
Z3 is designed to prevent electrical damage caused by the thermal paste.
- Pure Electrical Insulation
Superior Performance, Exquisite Appearance
The all-new E-SHIELD comes with 4mm thick Tempered Glass side-panel, which gives the case a unique look to perfectly show off your inner structure.A Square-hole Array style front panel is used to keep sufficient intake airflow from the front, and also to keep the exterior semi-transparent for RGB devices. Cooling performance is crucial for a computer case, and E-SHIELD does a great job on this point thanks to its square-hole array style front panel.Exquisite and optimized structural design makes E-SHIELD a leading choice for PC enthusiasts who want a PC chassis with great performance.
