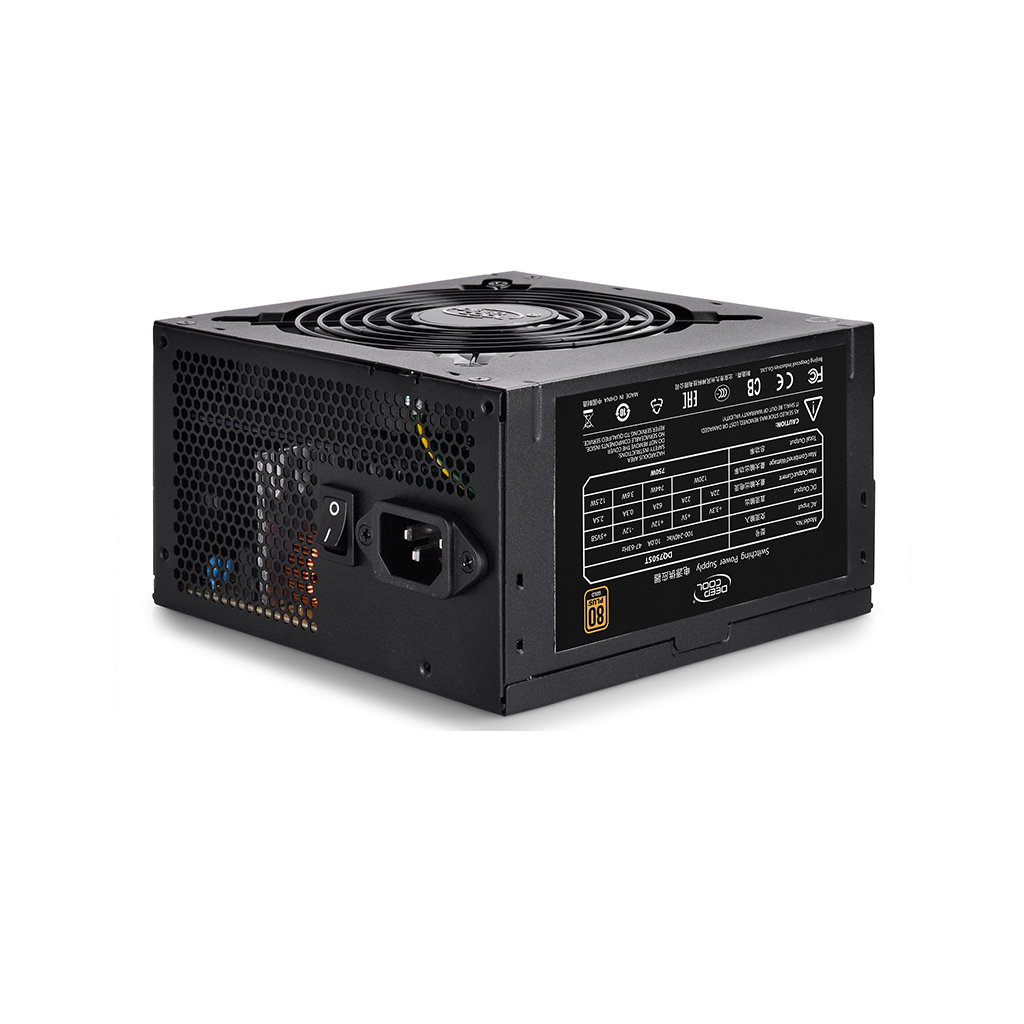

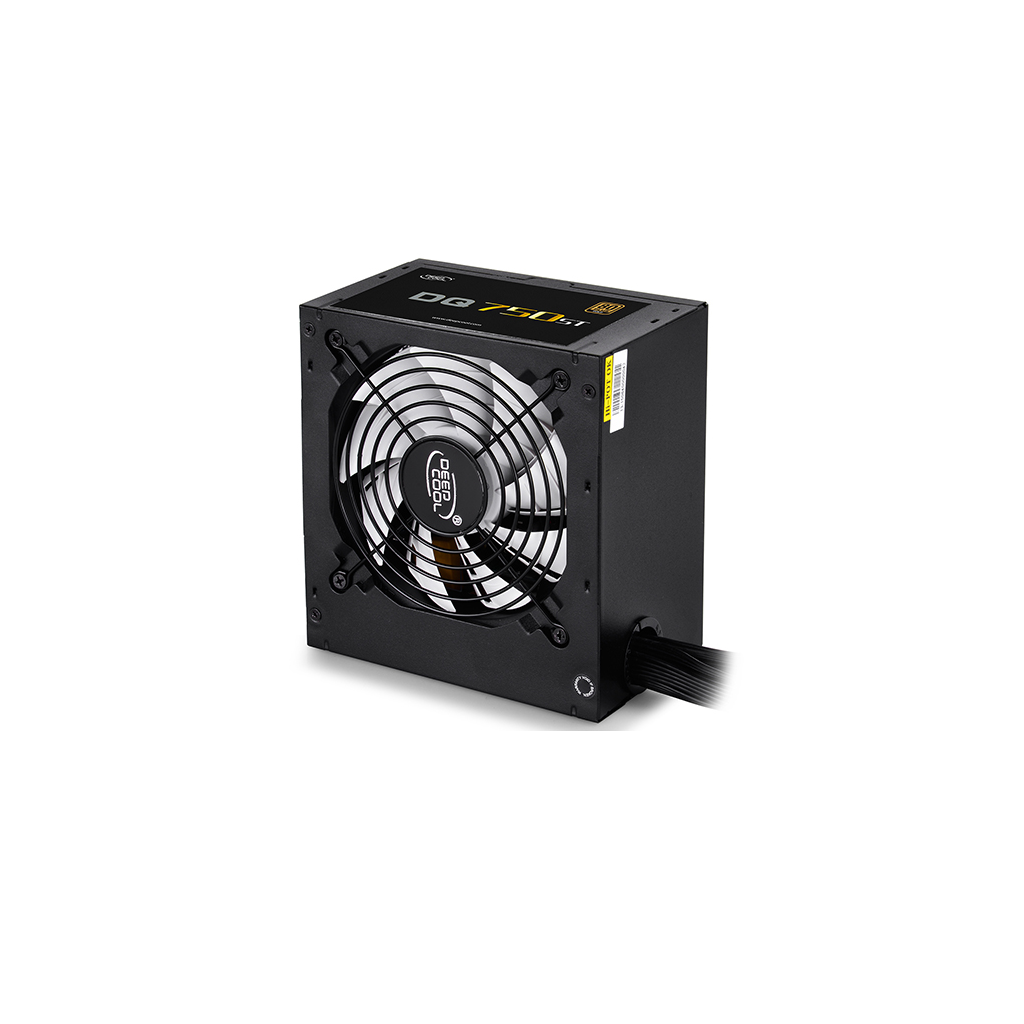

DEEPCOOL DQ750ST

	80PLUS GOLD 80 PLUS® Gold certified – Up to 87~90% efficient.

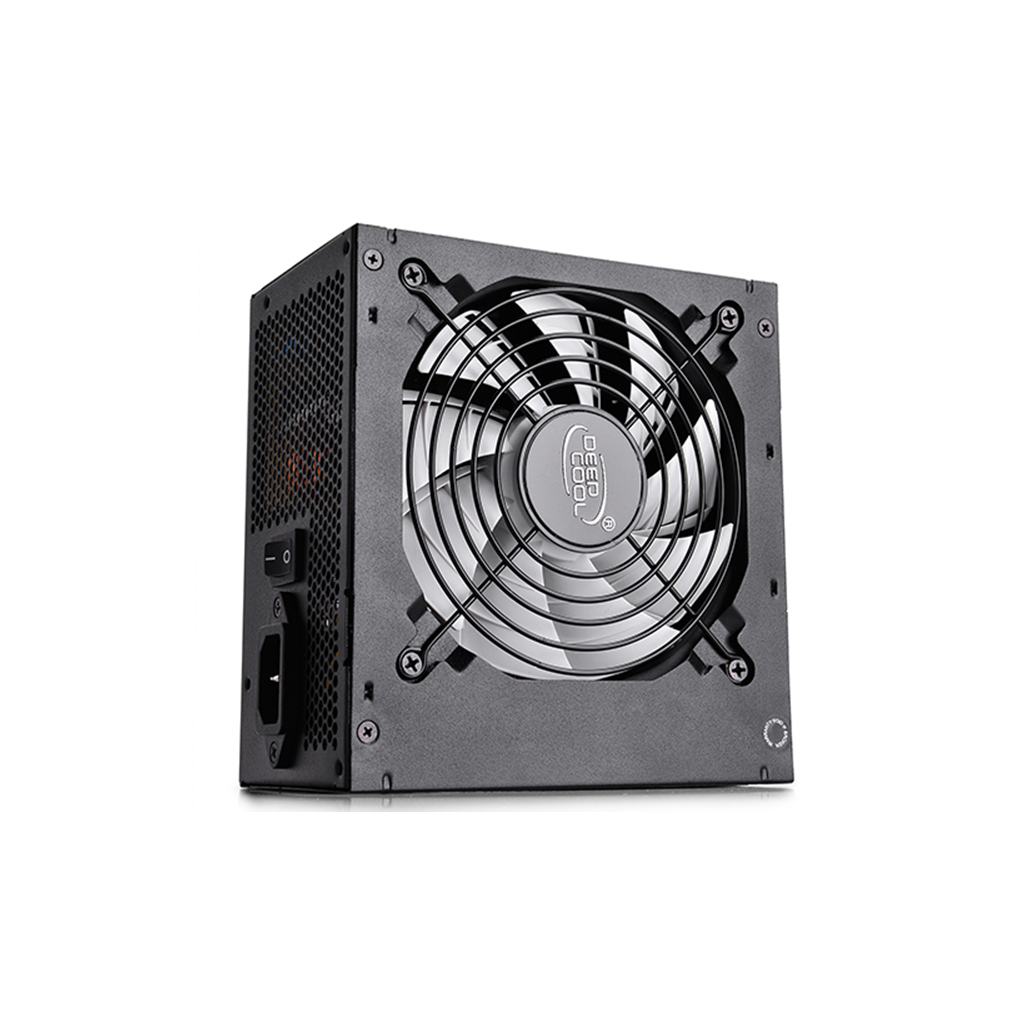

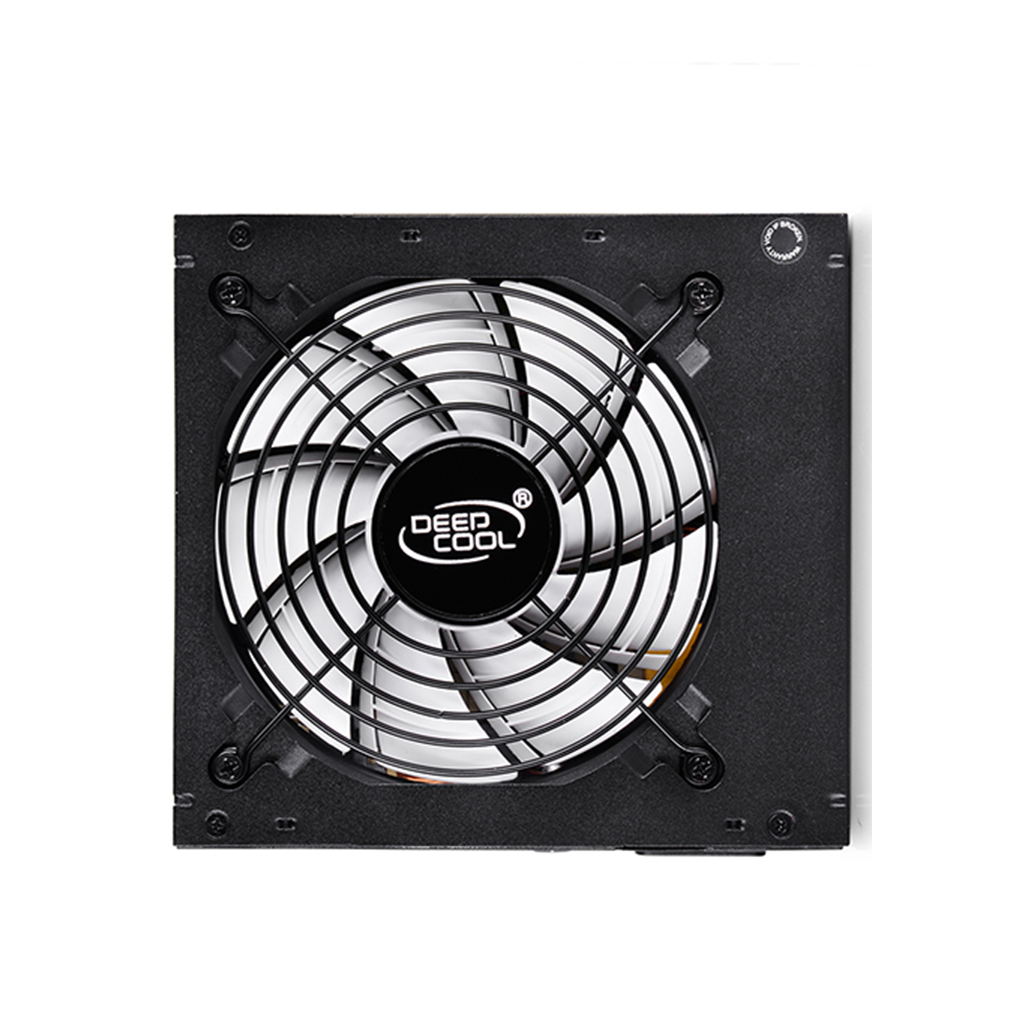

Silent, High Performance Fan 120 mm PWM-capable fan with FDB bearing with specialized fan impeller that delivers stronger wind pressure, ultra-low noise operations, and excellent performance.



High Grade Components

Insider details

Excellent 1- and 2-stage EMI filter circuit	Highly efficient Active PFC
High grade PFC Boost Capacitor	Highly efficient and stable transformer
Outstanding single +12V output	Highly reliable multi-layered protection

Voltage regulation

Features

• Compatible with Intel ATX12V v 2.31.
• 80 PLUS® GOLD certified: Up to 87-90% efficiency (at 20-100% loading).
• 120 mm silent fan with temperature control function.
• Longer flat cable for enhanced cable management to boost system cooling capacity.
• Double-Layer EMI Filter for protection against electromagnetic interference (EMI) and for noise control.
• Smart eco-friendly chipset, consuming only < 0.3W in off-mode. Compliant to ErP standards.
• CircuitShield™ – OVP, UVP, SCP, and OPP.
• Compliant Multi-Way SLI / CrossFire + Multi-Core CPUs.
• High reliability with at least 120,000-hour MTBF.

Output

AC INPUT	VOLTAGE		CURRENT	FREQUENCY
	100-240V		10.0A	47-63Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5VSB
CURRENT(Max)	22A	22A	62A	0.3A	2.5A
OUTPUT(Max)	120W		744W	3.6W	12.5W
TOTAL OUTPUT	750W

Model	DQ750ST
Type	ATX 12V V2.31
Certifications	80PLUS GOLD
Dimension	150×140×86mm (W x L x H)
Output Capacity	750W
Input Voltage	100~240V
Input Current	10A/5A
Input Frequency Range	47~63Hz
Fan Size	120mm FDB FAN
PFC	Active PFC (>0.99)
Power Good Signal	100-500ms
Hold Up Time	>16ms
Efficiency	90% Under Typical Load
Protection	OVP / UVP / SCP / OPP /
Operation Temperature	0~40°C
Regulatory	CE / FCC / CCC / CB / EAC / TUV
MTBF	120,000 Hours
EAN	6933412798545
P/N	DP-GD-DQ750ST
