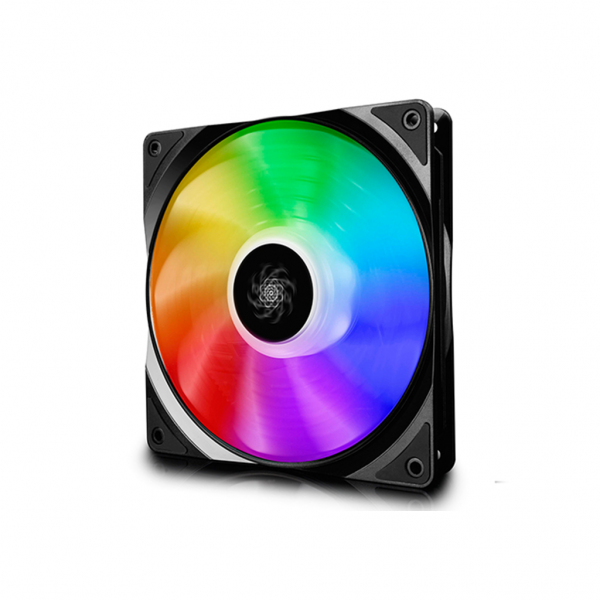

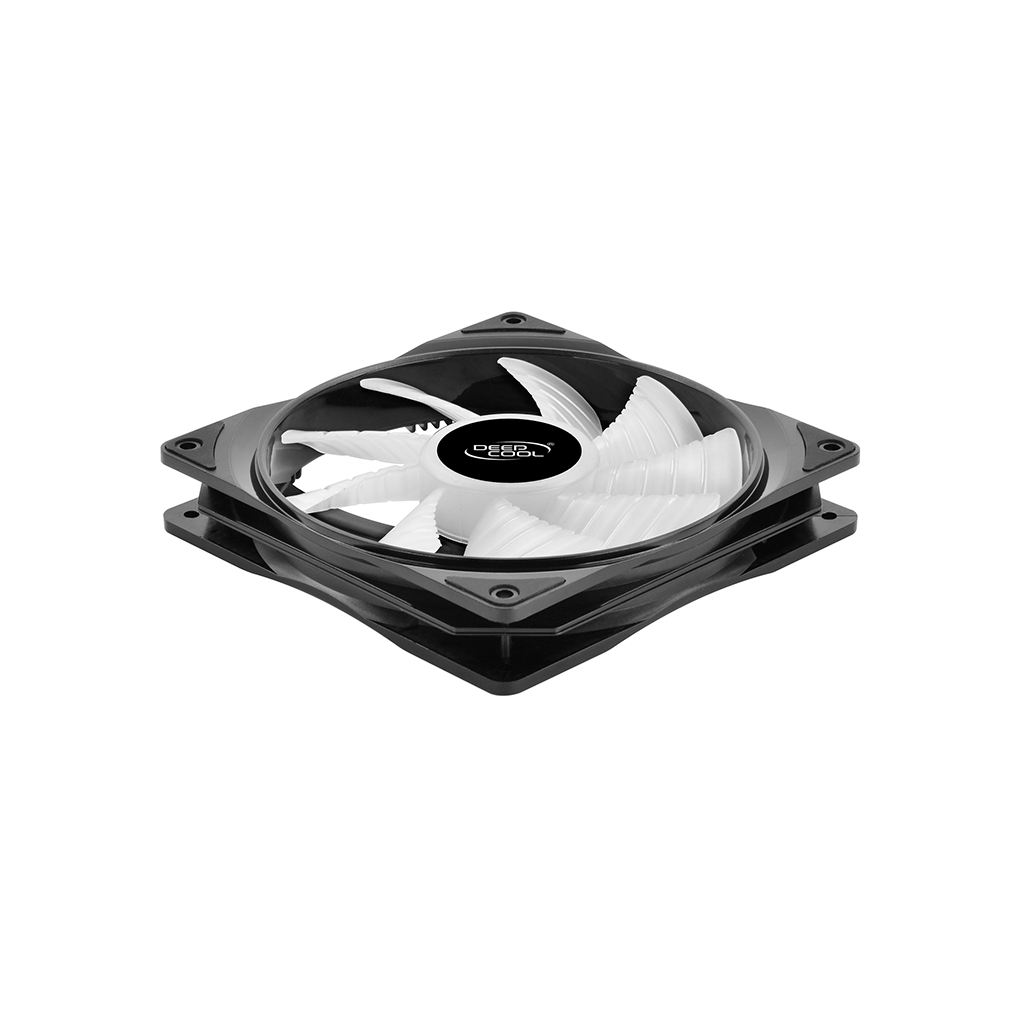

DEEPCOOL CF140 RGB

DEEPCOOL CF140 RGB

Online Shop in Thailand
Categories: , Tag:
Description

Customizable Addressable RGB LED Lighting

Utilize 12pcs of independently programmable RGB LED lights, CF120 provides full lighting for your build, achieving magical lighting effects with MB controls include 3 dynamic modes(waves, cycles and breathing) and 3 monochrome modes (constant light, breathing and meteor), up to 8 different colors to choose from

Synchronized Control via 5V A-RGB Header on MB

Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
Control by Using the Included A-RGB Controller
Use the included A-RGB Controller to control multiple Deepcool RGB devices, up to 6pcs
Better Balance on Performance & Low Noise
Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan

PWM Control

Super Silent

ADD-RGB LED
PWM Intelligent Control
Fan speed can be intelligently controlled by MB in accordance with temperature

Features

  • Utilize 12pcs of independently programmable RGB LEDs for amazing display effects
    *Can be easily controlled by MB through 5V A-RGB Header, no additional controller needed, and can synchronize with other A-RGB devices
  • Use the included A-RGB Controller to control multiple devices
  • Fan speed can be intelligently controlled by MB in accordance with temperature

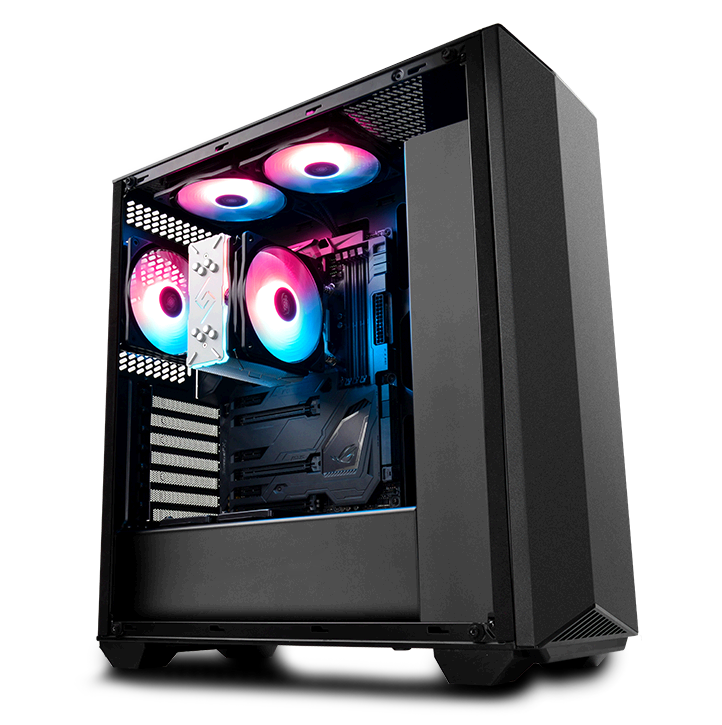

  • Better balance on air volume & air pressure, low noise, can be used as a case fan or CPU cooling fan
    *WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, Gigabyte

Technical Spec

Fan Dimension 140X140X26mm
Net Weight 198g
Fan Speed 500±200 -1200±10%RPM
Fan Air Flow 64.13CFM
Fan Air Pressure 1.09mmH2O
Fan Noise Level 19.8~24dB(A)
Fan Connector 4Pin
FAN Rated Voltage 12VDC
FAN Operating Voltage 10.8～13.2VDC
FAN Starting Voltage 7VDC
FAN Rated Current 0.02±15%A-0.09±10%A
FAN Power Input 1.08W
Bearing Type Hydro Bearing
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.48±10%A
LED Rated Power 2.4W
LED Connector 3pin（+5V-D-G）
LED Control M/B with 5V ADD-RGB Header
EAN 6933412710349
P/N DP-FA-RGB-CF140-1

Related Products

You might also interest in this
  •
    ,

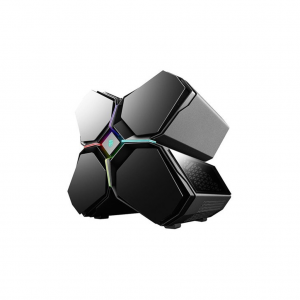

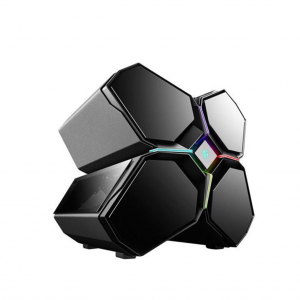

    DEEPCOOL QUADSTELLAR

    QUADSTELLAR – the world’s first smart PC case has revolutionized conventions by allowing users to customize RGB lighting and heat dissipation systems through an APP
    Online Shop in Thailand
  •
    ,

    DEEPCOOL KENDOMEN

    KENDOMEN is an ATX PC case capable of accommodating ATX, Micro ATX and Mini ITX motherboards. Classic exteriors and compact interiors. The case features excellent cooling performance, simple installation, superior expandability and easy future maintenance.

    Online Shop in Thailand

    For DEEPCOOL KENDOMEN RD:

    For DEEPCOOL KENDOMEN Ti:

  •
    ,

    DEEPCOOL MF120 3-IN-1 RGB

    MF120 is a PC case fan capable of powerful heat dissipation. Its unique frame-less design together with its double-layered positive pressure fans can deliver maximum airflow with zero hindrance. MF120 is also a smart fan and its controller can be wirelessly connected via WIFI to a user’s mobile terminal to control fan speed and lighting effects. The MF120 is the first PC case fan to adopt a seamless aluminum processing technique in its manufacturing process which enhances air intake performance

    Online Shop in Thailand
  •
    ,

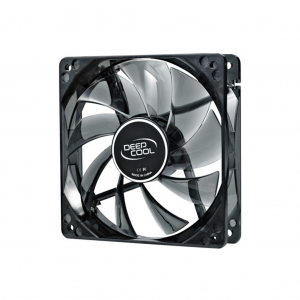

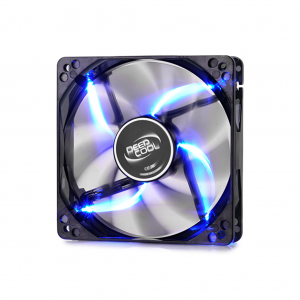

    DEEPCOOL WINBLADE
