DEEPCOOL CASTLE 280 RGB

DEEPCOOL CASTLE 280 RGB

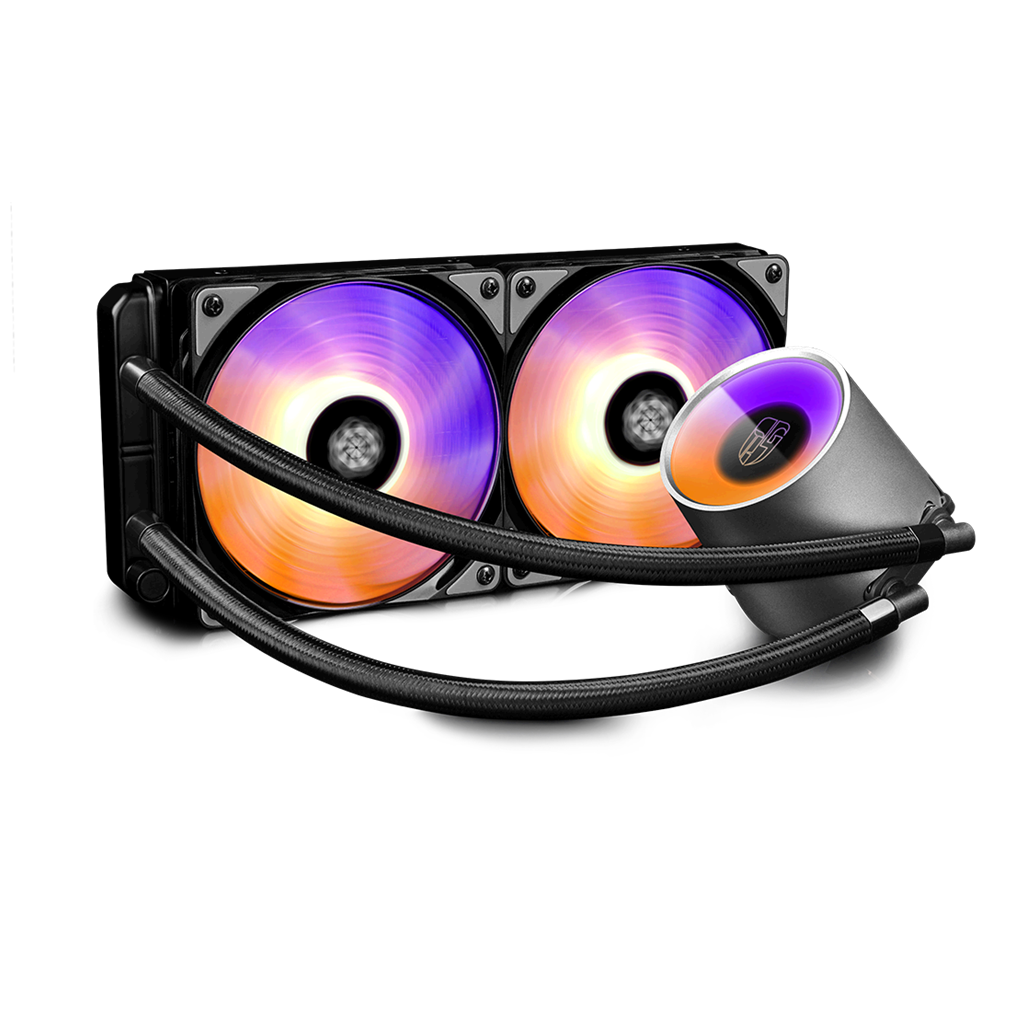

DEEPCOOL, the company that specializes in water-cooled and illuminated cases for the PC enthusiast has just introduced a brand new AIO liquid cooler- CASTLE 280RGB, suitable for Intel and AMD based systems. Its featured built-in double window panes and 16.7M true color lighting system provide a perfect display of aesthetic illumination. Its ultra-large, pure copper CPU block and its optimized E-shaped micro water channel designed to enlarge heat contact areas and effectively enhance heat circulation efficiency meet users’ needs for high performance and aesthetics

Online Shop in Thailand

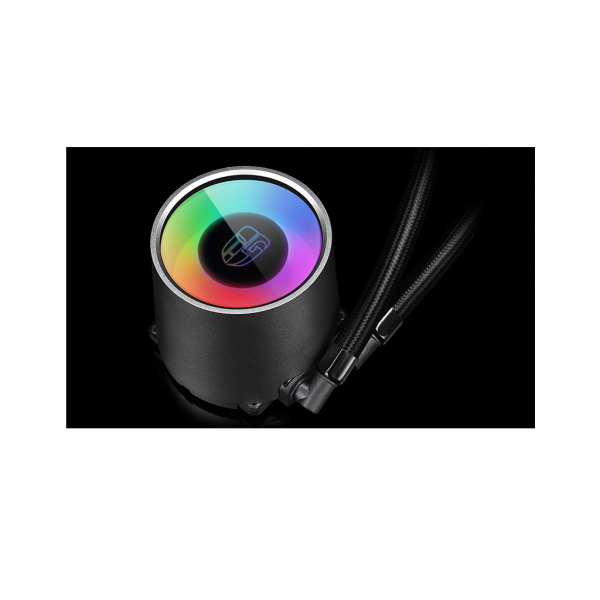

The brand new water-block comes with double window panes and an immersive ambient lighting design which provides a perfect display of aesthetic illumination. In addition, the synchronized RGB lighting system of waterblock and fans are easily controlled with a wired controller (included)

The 16.7M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes and also supports motherboards with synchronized lighting control via an addressable RGB function*

The optimized E-shaped micro water channel design effectively enhances heat circulation efficiency and enlarges heat contact areas

It seamlessly supports the TR4/AM4 and mainstream Intel & AMD socket types



The latest 120mm ADD-RGB case fans provide a flowing lighting effect, designed for builders with addressable RGB-enabled PCs to match your system’s style perfectly. Exhaustive damping technologies successfully minimize noise while maximizing airflow

Features

  • Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
  • The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
  • Motherboards are supported with synchronized lighting control via addressable RGB function*
  • Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
  • An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
  • The ceramic axle bearings and axle cores guarantee an ultra-long service life.
  • It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
    *WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.

Application For

Intel 165W

AMD 250W

LGA20XX/LGA1366/LGA115X

High End Desktop i9/i7
Core i7/i5/i3
Pentium G
Celeron G

TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Ryzen
APU A12/A10/A8/A6/A4
FX 8/6/4-Core
Phenom II X6/X4/X3/X2
Athlon II X4/X3/X2
Athlon X4

Technical Spec

Pump Dimensions 91×79×71mm(L×W×H)
Radiator Dimensions 323×146×27mm(L×W×H)
Radiator Material Aluminum
Fan Dimensions 140×140×26mm(2pcs)
Fan Speed 500±200~1800±10%RPM
Fan Air Flow 96.7CFM
Fan Air Pressure 2.83mmH2O
Fan Life Expectancy 40000 hours
Fan Noise Level 19.8~35.4dB(A)
Fan Bearing Type Hydro Bearing
Fan Connector 4Pin
Fan Rated Voltage 12VDC
Fan Rated Current 0.02±15%A(20%)-0.32±10%A
Fan Power Consumption 3.84W
Pump Life Expectancy 120000 hours
Pump Connector 3Pin
Pump Operating Voltage 10.8~13.2VDC
Pump Rated Voltage 12VDC
Pump Speed 2550±10%RPM
Pump Load Current 0.21±10%A
Pump Power Consumption 2.52W
Net Weight 1559±10g
LED Type Addressable RGB LED
LED Rated Voltage 5VDC
LED Rated Current 0.48±10%A
LED Rated Power 2.4W
LED Connector 3pin(+5V-D-G)
LED Control M/B with 5V ADD-RGB Header
EAN 6933412726494
P/N DP-GS-H12L-CSL280RGB

Product Dimension
