DEEPCOOL CASTLE 360 RGB

DEEPCOOL CASTLE 360 RGB

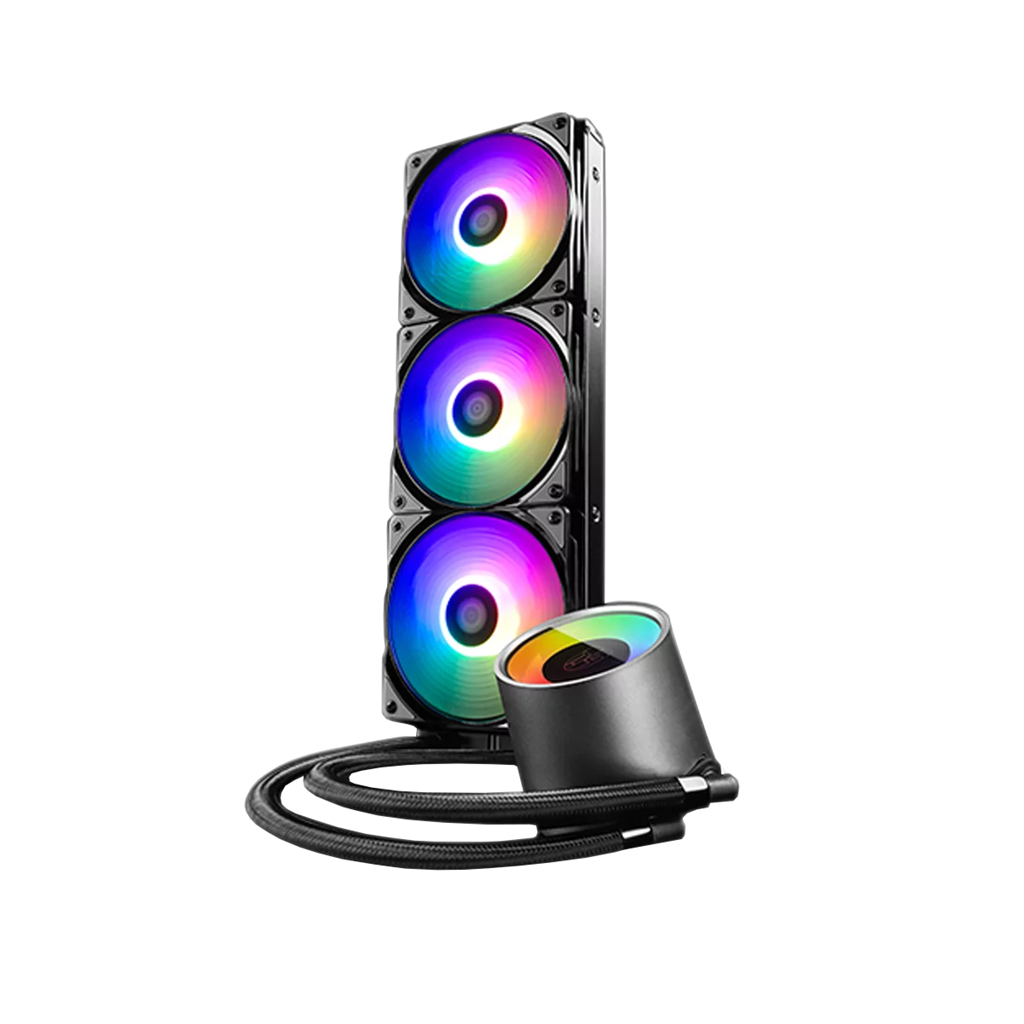

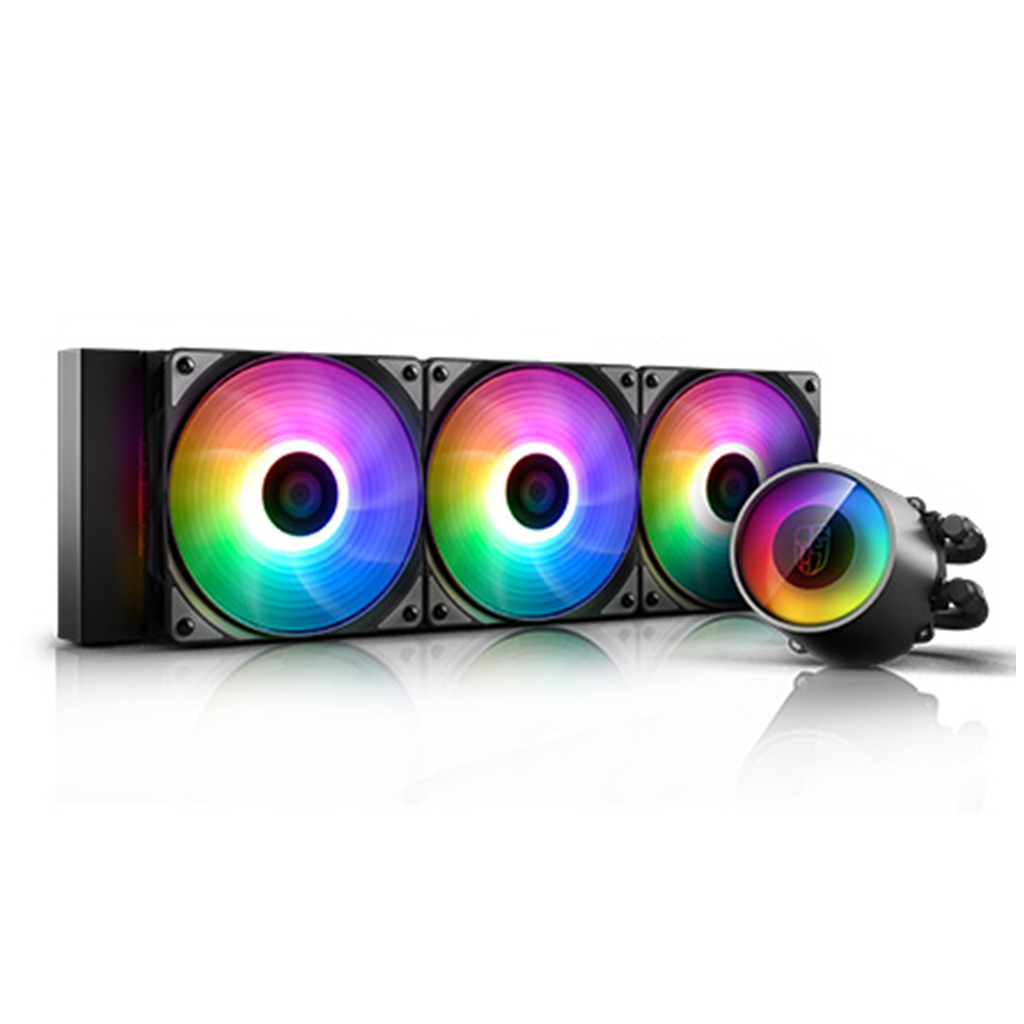

DEEPCOOL, the company that specializes in water-cooled and illuminated cases for the PC enthusiast has just introduced a brand new AIO liquid cooler- CASTLE 360RGB, suitable for Intel and AMD based systems. Its featured built-in double window panes and 16.7M true color lighting system provide a perfect display of aesthetic illumination. Its ultra-large, pure copper CPU block and its optimized E-shaped micro water channel designed to enlarge heat contact areas and effectively enhance heat circulation efficiency meet users’ needs for high performance and aesthetics

Online Shop in Thailand

The brand new water-block comes with double window panes and an immersive ambient lighting design which provides a perfect display of aesthetic illumination. In addition, the synchronized RGB lighting system of waterblock and fans are easily controlled with a wired controller (included)

The 16.7M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes and also supports motherboards with synchronized lighting control via an addressable RGB function*

The optimized E-shaped micro water channel design effectively enhances heat circulation efficiency and enlarges heat contact areas

It seamlessly supports the TR4/AM4 and mainstream Intel & AMD socket types



The latest 120mm ADD-RGB case fans provide a flowing lighting effect, designed for builders with addressable RGB-enabled PCs to match your system’s style perfectly. Exhaustive damping technologies successfully minimize noise while maximizing airflow

Features

  • Double window panes and immersive ambient lighting are designed to provide a perfect display of aesthetic illumination.
  • The 16.7 M true color RGB flowing light system with 5 in-built effects (dynamic, static, breathing, comet, and fashion collision) has 36 interchangeable lighting modes.
  • Motherboards are supported with synchronized lighting control via addressable RGB function*
  • Ultra-large, pure copper CPU block provides effective coverage and heat dissipation for CPUs of any size.
  • An optimized E-shaped micro water channel is designed to effectively enhance heat circulation efficiency and to enlarge heat contact areas.
  • The ceramic axle bearings and axle cores guarantee an ultra-long service life.
  • It supports mainstream INTEL and AMD socket mounting, including TR4/AM4.
    *WS2812B ADD-RGB LED is applied and the below 3pin ADD-RGB Headers are compatible for the device: 5V/D/G and 5V/D/NC/G, which is used for the mainstream M/B brands like ASUS, MSI, Gigabyte.

Application For

Intel

AMD

LGA20XX/1151/1150/1155/LGA1366 TR4/AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1

Technical Spec

Radiator Dimensions 395×120×27 mm
Radiator Material Aluminum
Net Weight 1715 g
Tube length 465 mm
Pump Dimensions 91×79×71 mm
Pump Speed 2550 RPM±10%
Pump Noise 17.8 dB(A)
Pump Connector 3-pin
Pump Rated Voltage 12 VDC
Pump Rated Current 0.21 A
Pump Power Consumption 2.52 W
Fan Dimensions 120×120×25 mm
Fan Speed 500~1800 RPM±10%
Fan Airflow 69.34 CFM
Fan Air Pressure 2.42 mmAq
Fan Noise ≤30 dB(A)
Fan Connector 4-pin PWM
Bearing Type Hydro Bearing
Fan Rated Voltage 12 VDC
Fan Rated Current 0.17 A
Fan Power Consumption 2.04 W
LED Type Addressable RGB LED
LED Connector 3-pin(+5V-D-G)
LED Rated Voltage 5 VDC
LED Power Consumption 2.7 W(PUMP)/ 7.2 W(FAN×3)
EAN 6933412726555
P/N DP-GS-H12L-CSL360RGB

Product Dimension
