AEROCOOL QUARTZ REVO

AEROCOOL QUARTZ REVO

RGB MID TOWER CASE

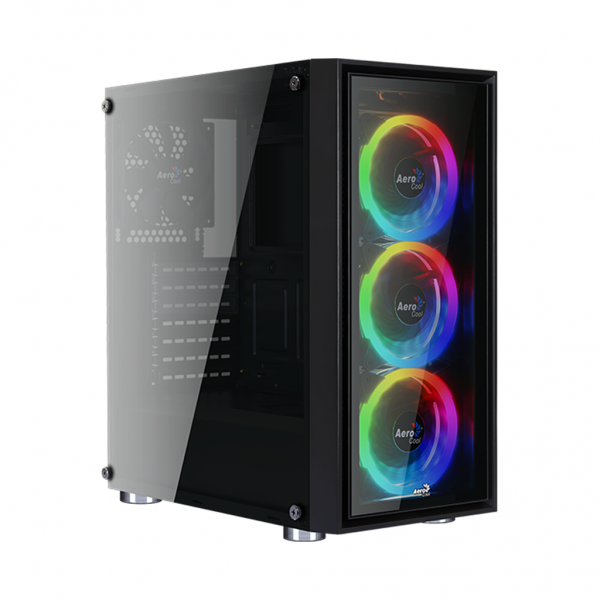

Masterfully crafted with full tempered glass side and front panels, the Quartz REVO properly showcases all that your rig has to offer. This high-performance mid tower case allows you to access 16.8 million colors using an Addressable RGB motherboard or control up to 14 preset lighting modes including 7 RGB flow and 7 static color modes via LED control switch.

Online Shop in Thailand



Categories: , Tag:

ADDRESSABLE RGB COMPATIBLE

Access 16.8 million colors via Addressable RGB motherboard (Asus Aura Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion) with 5V connector.

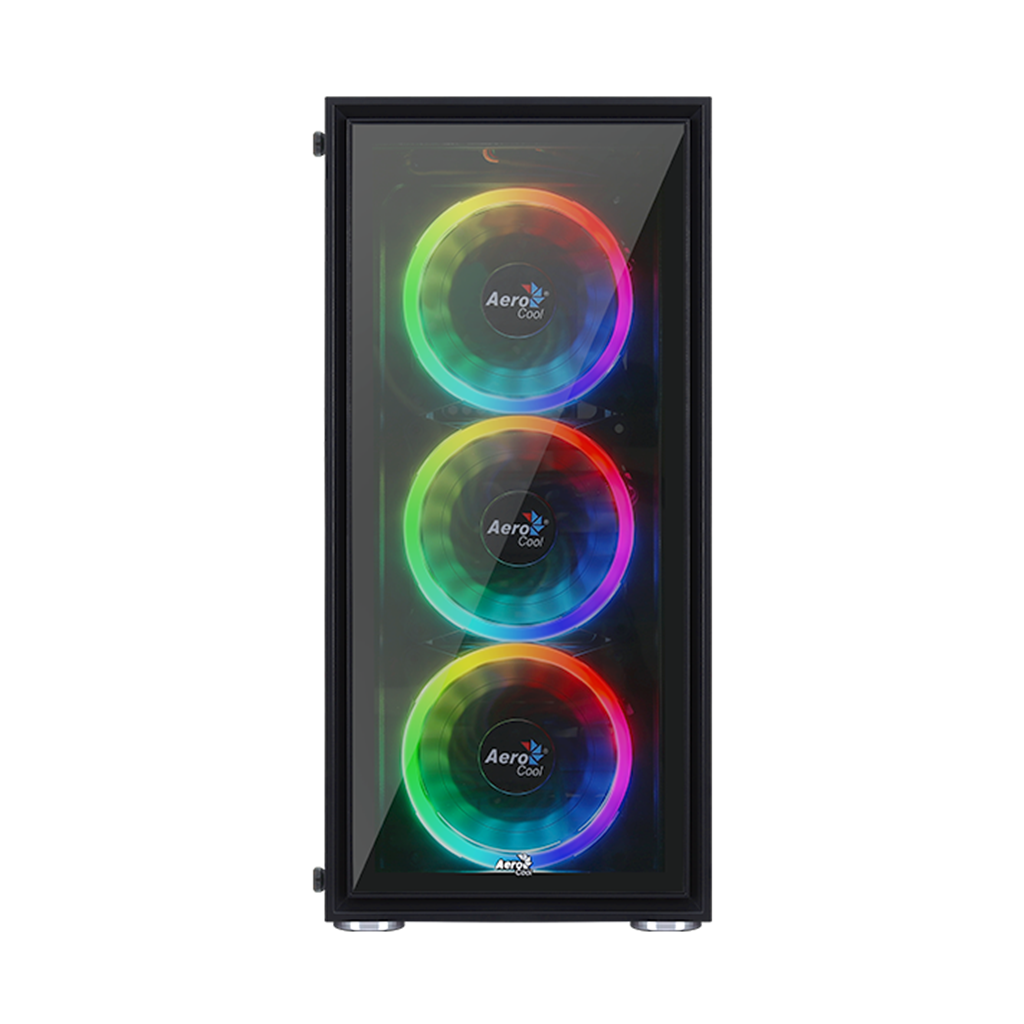

The Quartz REVO comes fully equipped with three Addressable RGB fans in the front panel to give your rig a stylish flair.

• Dual Ring Lighting
• Removable Fan Blades
• Anti-Vibration Pads

BRING YOUR CASE TO LIFE

Comes equipped with 14 unique preset lighting modes that can be readily controlled via LED control switch. Works only with Addressable RGB fans.

7 RGB Flow Lighting Modes

Static Rainbow | Rainbow | RGB Effects | Comet | Breathing | Trailing Colors | Trailing Colors Left

7 Static Color Modes

Red | Green | Blue | White | Yellow | Cyan | Pink

RGB CONTROL HUB

Comes equipped with a built-in RGB Control Hub supporting up to 6 Addressable RGB fans.

Motherboard connector supports Addressable RGB motherboards (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

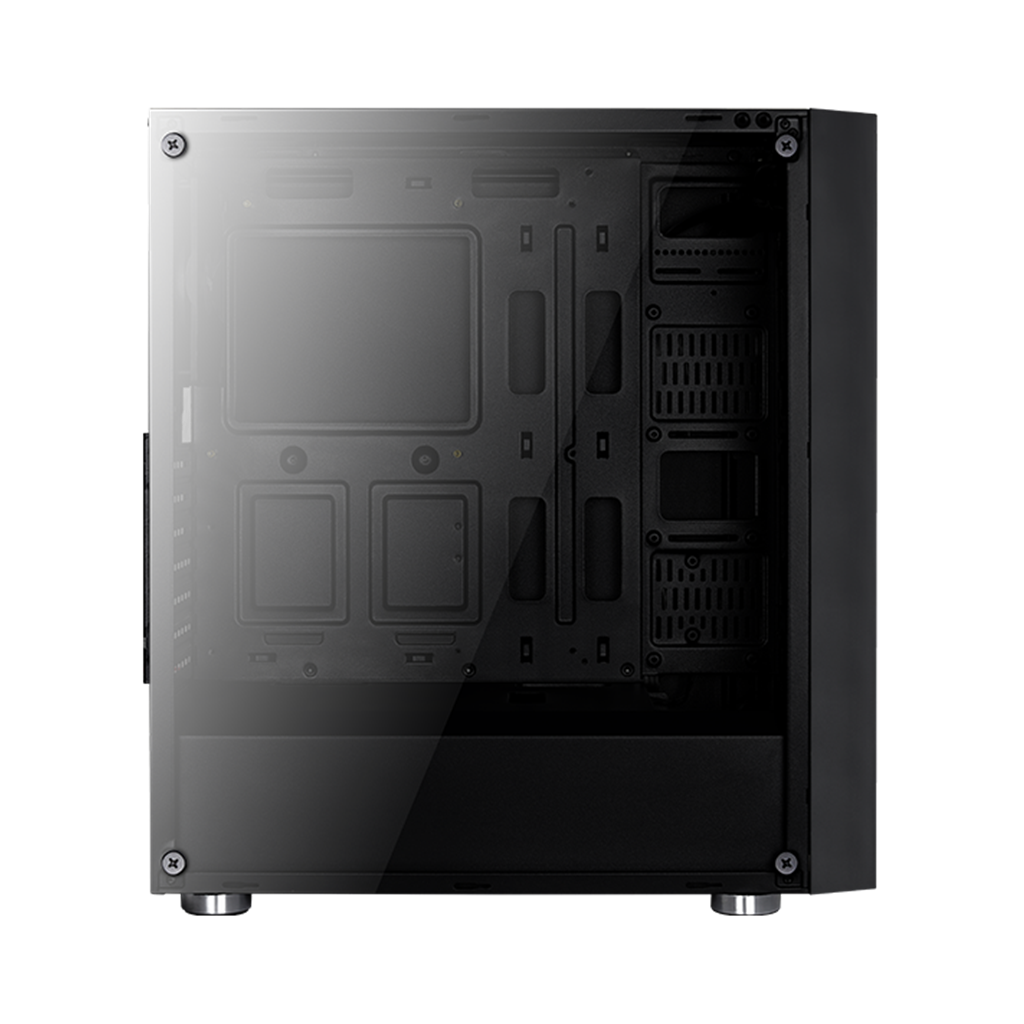

FLAUNT YOUR RIG

Comes equipped with beautifully crafted, full tempered glass side and front panels to properly showcase all that your rig has to offer.

ADJUSTABLE HDD CAGE

Comes with a fully adjustable HDD cage that can even be completely removed, allowing you to install a thicker radiator up to 60mm or a longer PSU.

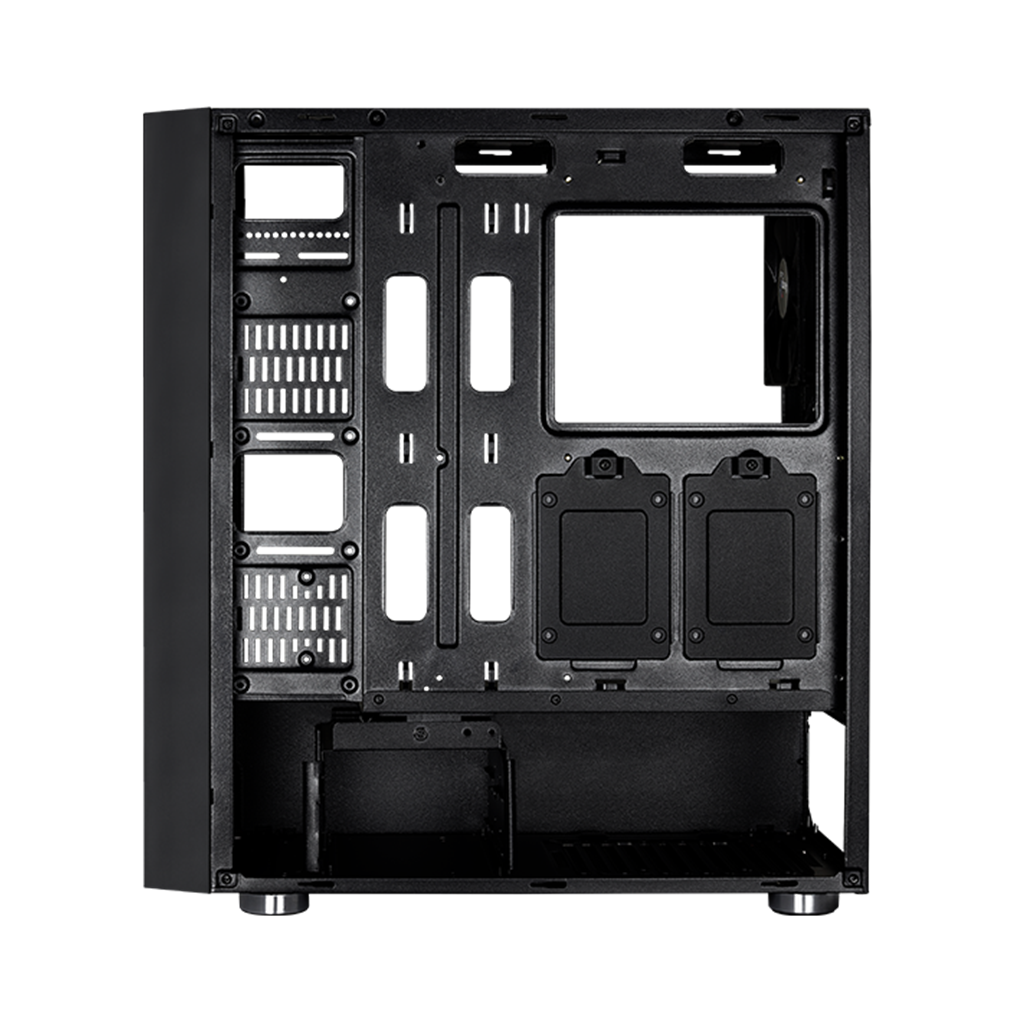

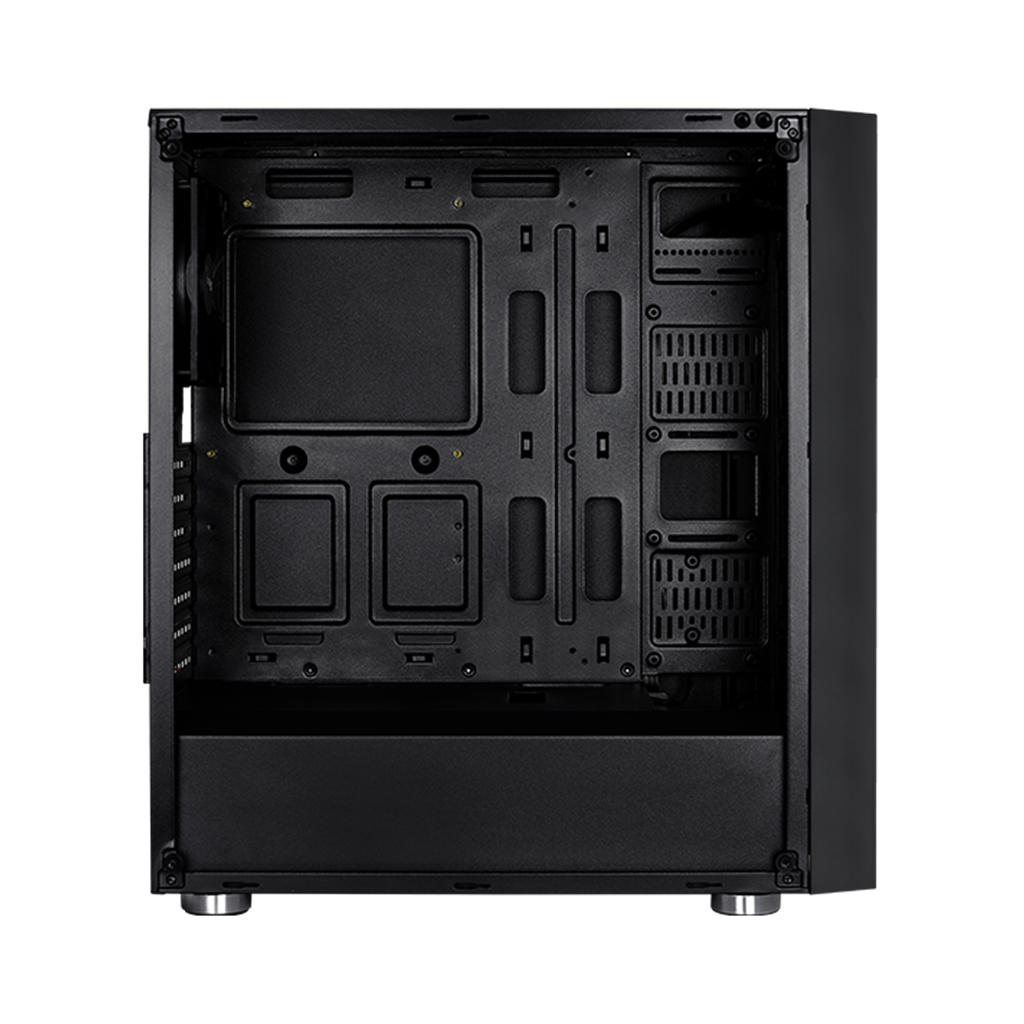

DUAL CHAMBER DESIGN

Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

AIR COOLING

Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

• Front: 120mm x 3 (Addressable RGB Fans Included)
• Top: 120mm x 2 or 140mm x 2 (Optional)
• Rear: 120mm x 1 (Included)

LIQUID COOLING

Supports liquid cooling in the front and top panels.

• Front Panel: Up to 360mm Radiator (Optional)
• Top Panel: 240mm Radiator (Optional)

ADJUSTABLE REAR FAN

Rear fan can be adjusted for 5 different positions, giving you more freedom for modifications or installing a thicker radiator.

BUILT FOR HIGH PERFORMANCE

• Supports ATX, Micro-ATX, and Mini-ITX motherboards
• Supports CPU cooler up to 152mm
• Supports high-end graphics cards up to 366mm

STORAGE CAPABILITY

Supports up to 2 x 3.5” HDDs and 4 x 2.5” HDDs/SSDs.

EASY MAINTENANCE

Removable PSU and top panel dust filters for convenient cleaning and maintenance.

Specifications

Model Quartz REVO
Case Type Mid Tower
Color Black
Steel Thickness >0.5mm
Motherboards ATX/micro ATX/mini-ITX
Case Dimensions (Internal) 200 x 440 x 368.95mm (W x H x D)
Case Dimensions (Overall) 206.1 x 455 x 408mm (W x H x D)
5.25” Drive Bays 0
3.5” Drive Bay 2
2.5” Drive Bay 4
Expansion Slots 7
GPU Clearance Supports GPU up to 341mm/366mm (without front fan)
CPU Cooler Clearance Supports CPU up to 152mm
I/O Ports USB3.0 x 1 | USB2.0 x 2 | HD Audio & Mic
Air Cooling Front: 120mm x 3 (Includes Addressable RGB Fan x 3)
Top: 120mm x 2 or 140mm x 2 (Optional)
Rear: 120mm x 1 (Includes 120mm Fan)
Liquid Cooling Front: 240/360mm Radiator (Optional)
Top: 240mm Radiator (Optional)
Net Weight/Gross Weight 5.9kg (13 lbs.)/6.6kg (14.55 lbs.)
Power Supply ATX PSU (Including cables, up to 185mm with HDD cage removed) (Optional)
